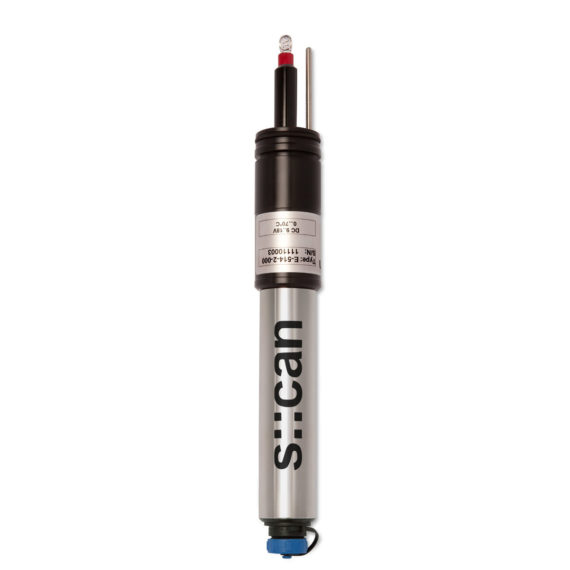

Description pH Probe Technical Specifications technical specification measuring principle potentiometric measuring principle detail combined, non-porous reference electrode measuring range application pro: 0 … 14 pH eco: 2 .. 12 pH resolution 0.01 pH accuracy (standard solution) 0,1 pH automatic compensation instrument temperature response time 30 sec. integrated temperature sensor 0 … 90 °C integration via con::cube con::lyte con::nect power supply 9 … 18 VDC power consumption (typical) 0.8 W power consumption (max.) 1 W interface to s::can terminals sys plug (IP67), RS485 cable length 7.5 m fixed cable (-075) or plug connection (-000) cable type PU jacket housing material stainless steel 1.4404/1.4401, POM-C weight (min.) 400 g dimensions (Ø x l) 33 x 257 mm operating pressure 0 … 10 bar installation / mounting submersed or in a flow cell process connection quick connect flow velocity 3 m/s (max.) 0.01 m/s (min.) automatic cleaning media: compressed air permissible pressure: 3 … 6 bar cleaning interval: depending on application conformity – EMC EN 61326-1 conformity – safety EN 61010-1 operating temperature (eco) 0 … 70 °C operating temperature (pro) 0 … 90 °C storage temperature (electrode) -5 … 30 °C storage temperature (sensor) -10 … 60 °C protection class (-000) IP67 protection class (-075) IP68 surface water concentration ranges and sensor/probe type for this application pH[pH] temperature[°C] part number pH::lyser eco min. 4 0 E-514-2-000 / -075 (pH, temp) max. 10 50 drinking water concentration ranges and sensor/probe type for this application pH[pH] temperature[°C] part number pH::lyser eco min. 5 0 E-514-2-000 / -075 (pH, temp) max. 9 50 municipal WWTP influent concentration ranges and sensor/probe type for this application pH[pH] temperature[°C] part number pH::lyser pro min. 0 0 E-514-3-000 / -075 (pH, temp) max. 14 70 municipal WWTP aeration concentration ranges and sensor/probe type for this application pH[pH] temperature[°C] part number pH::lyser pro min. 0 0 E-514-3-000 / -075 (pH, temp) max. 14 70 municipal WWTP effluent concentration ranges and sensor/probe type for this application pH[pH] temperature[°C] part number pH::lyser eco min. 2 0 E-514-2-000 / -075 (pH, temp) max. 12 60
