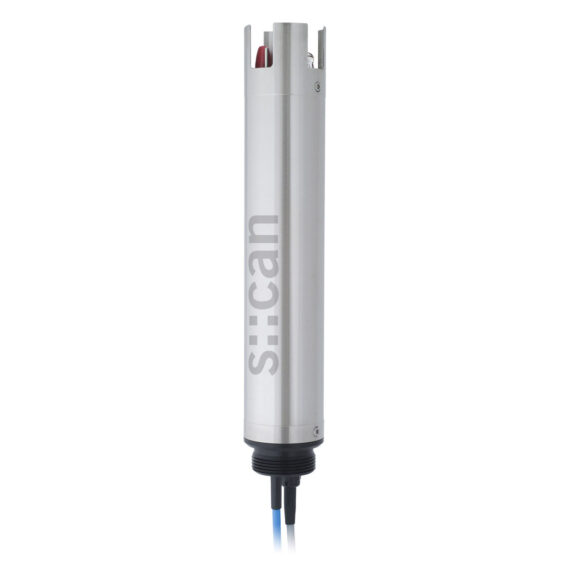

Ammonium Probe | ammo::lyser eco

Description Ammonium Probe | ammo::lyser eco Technical Specification measuring principle ISE measuring principle detail NH4-N: ionophore membrane pH: non-porous reference electrode NO3-N: ionophore membrane Cl-: ionophore membrane measuring range application 1 … 1000 mg/l NH4-N and Cl- (factory precalibrated: 1 to 100 mg/l NH4-N) resolution NH4-N: 0.02 19.99 mg/l NH4-N: 20.0 99.9 mg/l NH4-N: 100 1000 mg/l T: 0.1 °C accuracy (standard solution) NH4-N: /-3% of measuring range or /-0.5mg/l* (*whichever is greater) automatic compensation cross sensitivities E-532-eco-xxx: temp E-532-eco-pH-xxx: temp, pH E-532-eco-NO3-N-xxx: temp E-532-eco-NO3-N-pH-xxx: temp, pH E-532-eco-CL-xxx: temp E-532-eco-CL-pH-xxx: temp, pH precalibrated ex-works all parameters response time 0 … 60 sec. integration via con::cube con::lyte con::nect power supply 10 … 30 VDC power consumption (typical) 0.72 W interface to s::can terminals sys plug (IP67), RS485 cable length 7.5 m fixed cable (-075) or plug connection (-000) cable type PU jacket housing material stainless steel 1.4571, POM-C weight (min.) 2.7 kg dimensions (Ø x l) 60 x 326 mm operating temperature 0 … 60 °C operating pressure 0 … 400 mbar installation / mounting submersed or in a flow cell process connection bayonet flow velocity 0.01 m/s (min.), 3 m/s (max.) automatic cleaning media: compressed air permissible pressure: 2 … 4 bar air volume: 3 … 9 l per cleaning duration: 2 … 10 sec. per cleaning cleaning interval: 30 to 120 min., depending on application delay: 10 to 30 sec. conformity – EMC EN 50081-1, EN 50082-1, EN 60555-2, EN 60555-3 conformity – safety EN 61010-1 storage temperature (electrode) -5 … 30 °C storage temperature (sensor) 0 … 60 °C protection class (-000) IP67 protection class (-075) IP68 Surface Water Ammonium Factory Calibrations municipal WWTP effluent concentration ranges and sensor/probe type for this application NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number ammo::lyserTM II eco min. 0.1 0 E-532-eco-000 / -075 (NH 4 -N, temp) max. 10 60 ammo::lyserTM III eco Cl- min. 0.1 0 0 E-532-eco-CL-000 / -075 (NH 4 -N, temp, Cl-) max. 10 100 60 ammo::lyserTM III eco NO 3 -N min. 0.1 0 0 E-532-eco-NO 3 -N-000 / -075 (NH 4 -N, temp, NO 3 -N) max. 10 100 60 ammo::lyserTM III eco pH min. 0.1 4 0 E-532-eco-pH-000 / -075 (NH 4 -N, temp, pH) max. 10 10 60 ammo::lyserTM IV eco Cl- min. 0.1 4 0 0 E-532-eco-CL-pH-000 / -075 (NH 4 -N, temp, Cl-, pH) max. 10 10 100 60 ammo::lyserTM IV eco NO 3 -N pH min. 0.1 0 4 0 E-532-eco-NO 3 -N-pH-000 / -075 (NH 4 -N, temp, NO 3 -N, pH) max. 10 100 10 60   municipal WWTP aeration concentration ranges and sensor/probe type for this application NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] temperature[°C] part number ammo::lyserTM II eco min. 0.3 0 E-532-eco-000 / -075 (NH 4 -N, temp) max. 30 60 ammo::lyserTM III eco NO 3 -N min. 0.3 0 0 E-532-eco-NO 3 -N-000 / -075 (NH 4 -N, temp, NO 3 -N) max. 30 200 60 ammo_lyser_III_eco_pH min. 0.3 2 0 E-532-eco-pH-000 / -075 (NH 4 -N, Temp, pH) max. 30 12 60 ammo::lyserTM IV eco NO 3 -N pH min. 0.3 0 2 0 E-532-eco-NO 3 -N-pH-000 / -075 (NH 4 -N, temp, NO 3 -N, pH) max. 30 200 12 60 municipal WWTP effluent   municipal WWTP influent concentration ranges and sensor/probe type for this application NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number ammo::lyserTM II eco min. 10 0 E-532-eco-000 / -075 (NH 4 -N, temp) max. 1000 60 ammo::lyserTM III eco Cl- min. 10 0 0 E-532-eco-CL-000 / -075 (NH 4 -N, temp, Cl-) max. 1000 500 60 ammo::lyserTM III eco NO 3 -N min. 10 0 0 E-532-eco-NO 3 -N-000 / -075 (NH 4 -N, temp, NO 3 -N) max. 1000 500 60 ammo::lyserTM III eco pH min. 10 2 0 E-532-eco-pH-000 / -075 (NH 4 -N, temp, pH) max. 1000 12 60 ammo::lyserTM IV eco Cl- min. 10 2 0 0 E-532-eco-CL-pH-000 / -075 (NH 4 -N, temp, Cl-, pH) max. 1000 12 500 60 © s::can Messtechnik GmbH ammo::lyserTM IV eco NO 3 -N pH min. 10 0 2 0 E-532-eco-NO 3 -N-pH-000 / -075 (NH 4 -N, temp, NO 3 -N, pH) max. 1000 500 12 60 Clean Water Ammonium Factory Calibrations surface water concentration ranges and sensor/probe type for this application NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number ammo::lyserTM II eco min. 0.1 0 E-532-eco-000 / -075 (NH 4 -N, temp) max. 20 30 ammo::lyserTM III eco Cl- min. 0.1 0.1 0 E-532-eco-CL-000 / -075 (NH 4 -N, temp, Cl-) max. 20 200 30 ammo::lyserTM III eco NO 3 -N min. 0.1 0.1 0 E-532-eco-NO 3 -N-000 / -075 (NH 4 -N, temp, NO 3 -N) max. 20 200 30 ammo::lyserTM III eco pH min. 0.1 4 0 E-532-eco-pH-000 / -075 (NH 4 -N, temp, pH) max. 20 10 30 ammo::lyserTM IV eco Cl- min. 0.1 4 0.1 0 E-532-eco-CL-pH-000 / -075 (NH 4 -N, temp, Cl-, pH) max. 20 10 200 30 ammo::lyserTM IV eco NO 3 -N pH min. 0.1 0.1 4 0 E-532-eco-NO 3 -N-pH-000 / -075 (NH 4 -N, temp, NO 3 -N, pH) max. 20 200 10 30   drinking water concentration ranges and sensor/probe type for this application NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number ammo::lyserTM II eco min. 0.02 0 E-532-eco-000 / -075 (NH 4 -N, temp) max. 2 30 ammo::lyserTM III eco Cl- min. 0.02 0.1 0 E-532-eco-CL-000 / -075 (NH 4 -N, temp, Cl-) max. 2 100 30 ammo::lyserTM III eco NO 3 -N min. 0.02 0.1 0 E-532-eco-NO 3 -N-000 / -075 (NH 4 -N, temp, NO 3 -N) max. 2 200 30 ammo::lyserTM III eco pH min. 0.02 4 0 E-532-eco-pH-000 / -075 (NH 4 -N, temp, pH) max. 2 10 30 ammo::lyserTM IV eco Cl- min. 0.02 4 0 0 E-532-eco-CL-pH-000 / -075 (NH 4 -N, temp, Cl-, pH) max. 2 10 100 30 ammo::lyserTM IV eco NO 3 -N pH min. 0.02 0.1 4 0 E-532-eco-NO 3 -N-pH-000 / -075 (NH 4 -N, temp, NO 3 -N, pH) max. 2 200 10 30 Ammonium Probe | ammo::lyser eco
