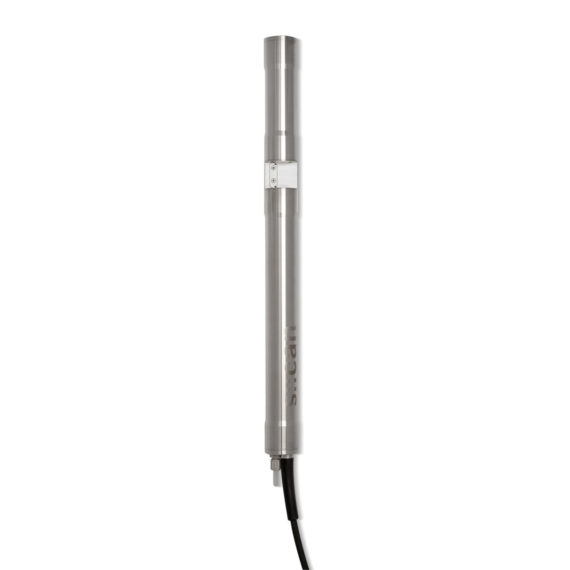

Description Online Ozone Sensor | Ozo::lyser V3 Technical Specifications Measuring principle UV-V is spectrometry 190 – 750 nm Measurement interval 10 sec Automatic cross sensitivities Turbidity |Solids | Organic Substances Precalibrated ex-works All parameters Accuracy standard solution (>1 mg/l) NO3-N : /- 3% 1/OPL[mg/l]* COD-KHP : /-3% 10/OPL[mg/l]* (*OPL – optical pathlength in mm) Reference standard Distilled Water Integrated Temperature Sensor 0 – 45 °C Temperature Sensor Resolution 0.1 °C Integration via Con::cube V3 Con::nect V3 Con::lyte V5 (D-320-pro2) Adapter cable (C-32-V3) Power supply 10 – 18 VDC Power consumption Typical: 3 W Sleep mode: 60mW max.: 20 W Interface to s::can terminals M12 RSTS 8Y | IP67 RS485 Ethernet Interface to third party terminals con::nect V3 incl. Modbus RTU REST API Modbus TCP| IP Digital interface (for cleaning devices) 1 digital in 1 digital out Network connection 100Base-T Ethernet | WLAN Status information RGB LED ring Internal sensors Supply voltage sensor Tilt sensor Rotation sensor Additional Specifications Cable length 1 m fixed cable (-010) 7.5 m fixed cable (-075) 15 m fixed cable (-150) Cable type PU jacket Housing material Stainless Steel 1.4404 Window material OPL 5 and 1 mm: Sapphire OPL 35 mm: UV-grade Fused silica Weight 3.4 kg (incl. cable) Dimensions (Ø x l) OPL 35 mm: 44 x 473 mm | 517.5 mm OPL 5 mm: 44 x 457 mm | 501.5 mm OPL 1 mm: 44 x 453 mm | 497.5 mm Operating Temperature 0 -45 °C Operating Pressure 0 – 3 bar High-pressure specification 10 bar Installation / mounting Submersed | in a flow cell Flow Velocity max. : 3 m.s-1 Mechanical Stability 30 Nm Ingress Protection Class IP68 Automatic cleaning media: compressed air | auto brush permissible pressure: 3 – 6 bar Storage temperature -10 – 65 °C Conformity | Environmental Testing EN 60721-3 Conformity | EMC EN 61326-1 Conformity | RoHS 2 EN 50581 Standard warranty 2 years Extended warranty 3 years Drinking-Water Specifications Drinking water parameter turbidity [NTU/FTU] O3 [mg/l] part number ozo::lyser II – V3 (2 parameters, 35 mm OPL) min. 0 0 G3-O2-D-35-NO-xxx max. 170 25 Waste-Water Specifications Municipal WWTP effluent parameter TSS [mg/l] O3 [mg/l] part number ozo::lyser II – V3 (2 parameters, 5 mm OPL) min. 0 0 G3-O2-E-05-NO-xxx max. 600 180 Online Ozone Sensor | Ozo::lyser V3
