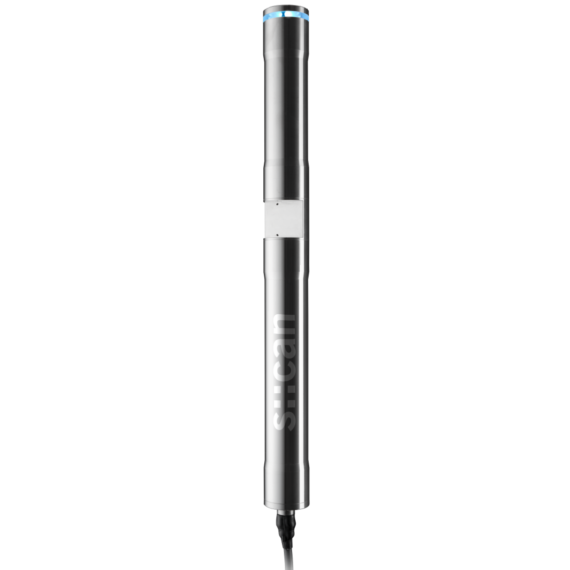

Online Spectrometer | Spectro::lyser V3

Description Online Spectrometer | Spectro::lyser V3 Technical Specification Measuring principle UV-V is spectrometry 190 – 750 nm Measuring principle detail Xenon flash lamp Pixel Array Detector Measurement interval 10 sec (configurable) Automatic cross sensitivities Turbidity | Solids | Organic substances Precalibrated ex-works All parameters Accuracy standard solution (>1 mg/l) NO3-N : /- 2% 1/OPL [mg/l]* COD-KHP : /-2% 10/OPL [mg/l]* (* OPL – Optical Path Length in mm) Access to raw signals Access to spectral information Reference standard Distilled Water Integrated Temperature Sensor 0 – 45 °C Temperature Sensor Resolution 0.1 °C Integration via Con::cube V3 Con::nect V3 Con::lyte V5 (D-320-pro2) Adapter cable (C-32-V3) Power supply 10 – 18 VDC Power consumption (typical) 3 W Power consumption (sleep mode) 60 mW Power consumption (max.) 20 W Interface to s::can terminals M12 RSTS 8Y | IP67 RS485  Ethernet Interface to third party terminals Con::nect V3 incl. Modbus RTU REST API Modbus TCP|IP Digital interface (for cleaning devices) 1 digital in 1 digital out Network connection 100 Base-T Ethernet | WLAN Status information RGB LED ring Additional Specifications Internal sensors Supply voltage sensor Tilt sensor Rotation sensor Cable length 1 m fixed cable (-010) | 7.5 m fixed cable (-075) 15 m fixed cable (-150) Cable type PU jacket Housing material Stainless steel 1.4404 Window material OPL 5 and 1 mm: sapphire OPL 35 mm: fused silica (UV-grade) Weight (min.) 3.4 kg (incl. cable) Dimensions (Ø x l) OPL 35 mm : 44 x 473 mm | 517.5 mm OPL 5 mm : 44 x 457 mm | 501.5 mm OPL 1 mm: 44 x 453 mm | 497.5 mm Operating temperature 0 – 45 °C Operating pressure 0 – 3 bar High-pressure specification 10 bar Installation / mounting Submersed | in a flow cell Flow velocity 3 m/s (max.) Mechanical stability 30 Nm Ingress protection class IP68 Automatic cleaning Media: compressed air | auto brush Permissible pressure : 3 – 6 bar Storage temperature -10 – 65 °C Conformity – environmental testing EN 60721-3 Conformity – EMC EN 61326-1 Conformity – RoHS 2 EN 50581 Standard warranty 2 years Extended warranty (optional) 3 years Drinking-Water Specification Groundwater parameter turbidity [NTU/FTU] color (app) [Hazen] color (tru) [Hazen] TOC [mg/l] DOC [mg/l] NO3 [mg/l] UV254 [Abs/m] UV254 f [Abs/m] BTX [mg/l] H2S [mg/l] part number spectro::lyserTM V3 (35 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 SP3-1-35-NO-xxx max. 170 500 300 20 15 88 71 60 51 5   Surface water parameter TSS [mg/l] turbidity [NTU/FTU] color (app) [Hazen] color (tru) [Hazen] TOC [mg/l] DOC [mg/l] BOD [mg/l] COD [mg/l] COD f [mg/l] NO3 [mg/l] HS- [mg/l] Chl-a [µg/l] UV254 [Abs/m] UV254 f [Abs/m] BTX [mg/l] part number spectro::lyserTM V3 (35 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-35-NO-xxx max. 170 200 500 300 30 25 42 71 42 66 5 100 71 60 51 spectro::lyserTM V3 (5 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-05-NO-xxx max. 1200 1400 3500 2100 210 180 300 500 300 460 35 700 500 420 360   Drinking water parameter turbidity [NTU/FTU] color (app) [Hazen] color (tru) [Hazen] TOC [mg/l] DOC [mg/l] NO3 [mg/l] chloramine [mg/l] O3 [mg/l] CLD [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (35 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 SP3-1-35-NO-xxx max. 170 500 300 22 17 88 42 25 22 71 60 Waste-Water Specification Municipal WWTP influent & sewer parameter TSS [mg/l] color (app) [Hazen] color (tru) [Hazen] TOC [mg/l] DOC [mg/l] BOD [mg/l] COD [mg/l] COD f [mg/l] NO3-N [mg/l] HS- [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-01-NO-xxx max. 8000 23000 14000 3300 2600 5300 10000 5300 100 80 3300 2800 spectro::lyserTM V3 (5 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-05-NO-xxx max. 1200 3500 2100 500 400 800 1500 800 16 12 500 420   Municipal WWTP aeration parameter TS [g/l] COD f [mg/l] NO3-N [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 SP3-1-01-NO-xxx max. 20 530 26 3300 2800   Municipal WWTP influent parameter TSS [mg/l] turbidity [NTU/ FTU] color (app) [Hazen] color (tru) [Hazen] TOC [mg/l] DOC [mg/l] BOD [mg/l] COD [mg/l] COD f [mg/l] NO3-N [mg/l] O3 [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-01-NO-xxx max. 4000 8000 23000 14000 2600 2000 2000 3300 2000 300 1200 3300 2800 spectro::lyserTM V3 (5 mm OPL, UV-Vis) min. 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-05-NO-xxx max. 600 1200 3500 2100 400 300 300 500 300 45 180 500 420   Paper mill WWTP influent parameter TSS [mg/l] COD [mg/l] COD f [mg/l] NO3-N [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-01-NO-xxx max. 8000 13000 11000 100 3300 2800 spectro::lyserTM V3 (5 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-05-NO-xxx max. 1200 2000 1700 16 500 420   Paper mill WWTP effluent parameter TSS [mg/l] COD [mg/l] COD f [mg/l] NO3-N [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-01-NO-xxx max. 4000 5300 3300 100 3300 2800 spectro::lyserTM V3 (5 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-05-NO-xxx max. 600 790 490 16 500 420   Brewery WWTP influent parameter TSS [mg/l] COD [mg/l] COD f [mg/l] NO3-N [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-01-NO-xxx max. 13000 60000 53000 100 3300 2800 spectro::lyserTM V3 (5 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-05-NO-xxx max. 2000 9000 7900 16 500 420   Dairy WWTP influent parameter TSS [mg/l] COD [mg/l] COD f [mg/l] NO3-N [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyserTM V3 (1 mm OPL, UV-Vis) min. 0 0 0 0 0 0 SP3-1-01-NO-xxx max. 8000 33000 16000 210 3300 2800 Online Spectrometer | Spectro::lyser V3
