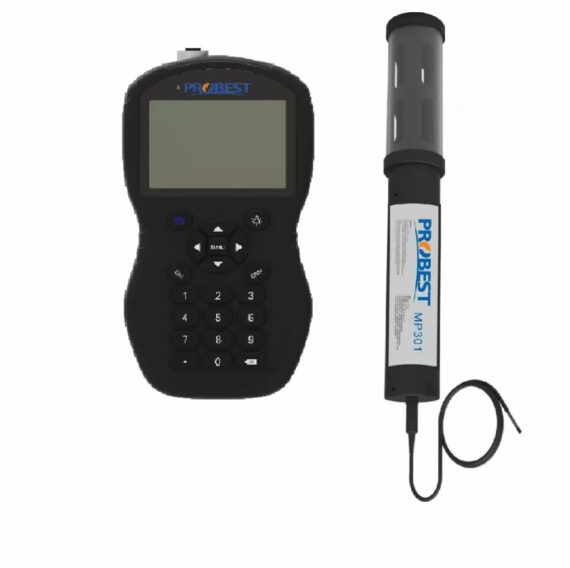

Portable Multi-Parameter Analyser Kit | MP301 HDC-100A

Description Portable Multi-Parameter Analyser Kit | MP301 & HDC-100A Mainframe Physical Indicators Power Supply 12VDC Measuring Temperature 0~45℃ （non-freezing） Power Dissipation 3W Storage Temperature 0~50℃ （non-freezing） Communication protocol MODBUS RS485 Protection Class IP68 Size Diameter 90*Length 640.5mm Weight 3KG Maximum withstand pressure depth 30 M Battery capacity 8 sections, 8C, 3.6V lithium battery Communicator Physical Indicators Display 3.5-inch color display screen with adjustable backlight Data storage 8G data storage space Material ABS PC Power supply Built-in battery power, battery specifications: 4 3.7V rechargeablelithium battery Protection level IP67 Operating temperature 0~50℃（Non-freezing） Storage temperature -15~60℃ Size 203*100*43mm Weight 0.5KG Standard Electrode Parameters Depth (Pressure) Principle Pressure-sensitive Method Range 0-61m(Maximum withstand pressure depth: 30M） Resolution 2cm Accuracy ±0.3% Temperature Principle Thermistor method Range 0℃~50℃ Resolution 0.01℃ Accuracy ±0.5℃ pH sensor Principle Glass electrode method Range 0-14 pH Resolution 0.01 pH Accuracy ±0.1 pH ORP Sensor Principle Glass electrode method Range -1000mV ~ 1000mV Resolution 1mV Accuracy ±5mV Conductivity sensor Principle A pair of platinum gauze electrode Range 1us/cm-2000 us/cm（K=1） 100us/cm-100ms/cm（K=10.0） Resolution 0.1us/cm~0.01ms/cm（Depending on the range） Accuracy ±3% Turbidity sensor Principle Light scattering method Range 0-1000NTU Resolution 0.1NTU Accuracy ± 5% or 0.3NTU, whichever is greater DO sensor Principle Fluorescence Range 0 -20 mg/L；0-20 ppm；0-200% Resolution 0.1%/0.01mg/l Accuracy ±3% or ±0.3 mg/L, whichever is greater Chlorophyll sensor Principle Fluorescence Range 0-500 ug/L Resolution 0.01 ug/L~0.1 ug/L, Depending on range Accuracy ±5% of the signal level corresponding value of 1ppb Rhodamine WT Dye Blue-green algae sensor Principle Fluorescence Range 200-300,000cells/mL Resolution 25cells/mL Accuracy ±10% of the signal level corresponding value of 1ppb Rhodamine WT Dye Ammonia nitrogen Sensor Principle Ion selection Range 0.1~100mg/L-N Resolution 0.01mg/L-N Accuracy ±10% or ±2mg/L Nitrate nitrogen Sensor Principle Ion selection Range 0.5~100mg/L-N Resolution 0.01mg/L-N Accuracy ±10% or ±2mg/L Chloride Sensor Principle Ion selection Range 3~1000mg/L Resolution 0.01~1mg/L Accuracy ±10% or ±2mg/L Fluoride Sensor Principle Ion selection Range 0.5~1000mg/L Resolution 0.01~1mg/L Accuracy ±10% or ±2mg/L Portable Multi-Parameter Analyser Kit | MP301 & HDC-100A
