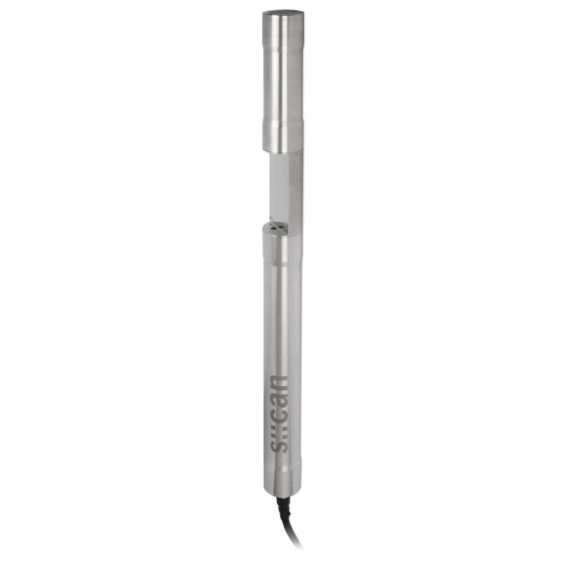

UV-VIS Spectrometer V2 | spectro::lyser

Description UV-VIS Spectrometer V2 | spectro::lyser Technical Specifications measuring principle UV-Vis spectrometry 190 – 750 nm UV spectrometry 190 – 390 nm measuring principle detail xenon flash lamp, 256 photo diodes automatic compensation instrument two beam measurement, complete spectrum automatic compensation cross sensitivities turbidity / solids / organic substances precalibrated ex-works all parameters accuracy standard solution (>1 mg/l) NO3-N: /- 2% 1/OPL[mg/l]* COD-KHP: /-2% 10/OPL[mg/l]* (* OPL optical pathlength in mm) access to raw signals access to spectral information reference standard distilled water onboard memory 656 KB integrated temperature sensor -10 … 50 °C resolution temperature sensor 0.1 °C integrated pressure sensor (optional) 0 … 1,2/2/11 bar resolution pressure sensor 1:1000 of measuring range integration via con::cube con::lyte con::nect power supply 11 – 15 VDC power consumption (typical) 4.2 W power consumption (max.) 20 W interface to s::can terminals MIL connector (IP68), RS485 interface to third party terminals con::nect incl. gateway modbusRTU cable length 7.5 m fixed cable (-075) or 1 m fixed cable (-010) cable type PU jacket housing material stainless steel 1.4404 window material optical path length 15 … 0.5 mm: sapphire optional: optical path length 100 … 5 mm: fused silica (UV-grade) weight (min.) 3.4 kg (incl. cable) dimensions (Ø x l) optical path length 100 mm: 44 x 612 mm / 656 mm optical path length 35 … 0.5 mm: 44 x 547 mm / 591 mm operating temperature 0 … 45 °C storage temperature -10 … 50 °C operating pressure 0 … 3 bar high pressure specification (optional) 10 bar explosion proof specification (optional) RL 94/9EG, 2014/34/EU, TÜV-A16 ATEX 3001Q installation / mounting submersed or in a flow cell flow velocity 3 m/s (max.) mechanical stability 30 Nm ingress protection class IP68 automatic cleaning media: compressed air permissible pressure: 3 … 6 bar air volume: 7 … 20 l per cleaning duration: 1 … 5 sec. per cleaning cleaning interval: every 1st to 10th measuring interval delay: 10 – 30 sec. conformity – EMC EN 61326-1, EN 61326-2-3 conformity – safety EN 61010-1 extended warranty (optional) 3 years WASTEWATER RANGES municipal WWTP aeration concentration ranges and sensor/probe type for this application TSS [mg/l] TSS est [mg/l] NO3-N [mg/l] NO2-N [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyser UV (TSS est, NO3-N, CODf, UV254, NO2-N) min. 0 0 0 0 0 Sp2-001-p0-sNO-010 / -075 (incl. Global Calibration l2) max. 6000 100 500 1200 2500 spectro::lyser UV-Vis (TSS, NO3-N, CODf, UV254, UV254f) min. 0 0 0 0 0 Sp1-001-p0-sNO-010 / -075 (incl. Gobal Calibration l1) max. 15000 100 1200 2500 2000 municipal WWTP effluent concentration ranges and sensor/probe type for this application TSS [mg/l] TSS est [mg/l] NO3-N [mg/l] NO2-N [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyser UV (TSS est, NO3-N, COD, UV254, NO2) min. 0 0 0 0 0 Sp2-005-p0-sNO-010 / -075 (incl. Global Calibration e2) max. 300 45 20 500 500 spectro::lyser UV-Vis (TSS, NO3-N, COD, CODf, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-005-p0-sNO-010 / -075 (incl. Global Calibration e1) max. 600 45 500 300 500 400 paper mill WWTP effluent concentration ranges and sensor/probe type for this application TSS [mg/l] NO3-N [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyser UV-Vis (TSS, NO3-N, COD, CODf, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075 (incl. Global Calibration q1) max. 1000 10 350 350 1250 1000 brewery WWTP influent concentration ranges and sensor/probe type for this application TSS [mg/l] COD [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyser UV-Vis (TSS, COD, UV254, UV254f) min. 0 0 0 0 Sp1-002-p0-sNO-010 / -075 (incl. Global Calibration b1) max. 5000 45000 1250 1000 municipal WWTP influent & sewer concentration ranges and sensor/probe type for this application TSS [mg/l] NO3-N [mg/l] COD [mg/l] COD f [mg/l] BOD [mg/l] UV254 [Abs/m] UV254 f [Abs/m] HS [mg/l] part number spectro::lyser UV-Vis (TSS, NO3-N, COD, BOD, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-002-p0-sEX-010 / -075 (incl. Global Calibration i3) max. 3000 40 3750 2000 1250 1000 spectro::lyser UV-Vis (TSS, NO3-N, COD, CODf, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075 (incl. Global Calibration i1) max. 3000 40 3750 1250 1250 1000 spectro::lyser UV-Vis (TSS, NO3-N, COD, HS-, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075 (incl. Global Calibration i5) max. 3000 40 3750 1250 1000 25 dairy WWTP influent concentration ranges and sensor/probe type for this application TSS [mg/l] NO3-N [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyser UV-Vis (TSS, NO3-N, COD, CODf, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-001-p0-sNO-010 / -075 (incl. Global Calibration m1) max. 6000 80 12500 6000 2500 2000 paper mill WWTP influent concentration ranges and sensor/probe type for this application TSS [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] part number spectro::lyser UV-Vis (TSS, COD, CODf, UV254, UV254f) min. 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075 (incl. Global Calibration p1) max. 3000 5000 4250 1250 1000 DRINKING WATER RANGES ground water concentration ranges and sensor/probe type for this application turbidity [NTU/FTU] turbidity est [NTU/FTU] NO3-N[mg/l] NO2-N[mg/l] TOC[mg/l] DOC[mg/l] UV254[Abs/m] UV254 f[Abs/m] color (app) [Hazen] color (tru) [Hazen] H2S[mg/l] part number spectro::lyser UV- (turbidity est, NO3-N, TOC, UV254, NO2-N) min. 0 0 0 0 0 Sp2-035-p0-sNO-010 / -075(incl. Global Calibration g2) max. 170 20 5 20 70 spectro::lyser UV-Vis(turbidity, NO3-N, TOC, DOC, H2S) min. 0 0 0 0 0 Sp1-035-p0-sNO-010 / -075(incl. Global Calibration g5) max. 170 20 20 15 20 spectro::lyser UV-Vis(turbidity, NO3-N, TOC, DOC, UV254, hazen) min. 0 0 0 0 0 0 0 Sp1-035-p0-sNO-010 / -075(incl. Global Calibration g7) max. 170 20 20 15 70 300 200 spectro::lyser UV-Vis(turbidity, NO3-N, TOC, DOC, UV254, UV254f) min. 0 0 0 0 0 0 Sp1-035-p0-sNO-010 / -075(incl. Global Calibration g1) max. 170 20 20 15 70 55 surface water concentration ranges and sensor/probe type for this application turbidity [NTU/FTU] turbidity est [NTU/FTU] NO3-N [mg/l] NO2-N [mg/l] TOC [mg/l] DOC [mg/l] UV254 [Abs/m] UV254 f [Abs/m] colour (app) [Hazen] colour (tru) [Hazen] part number spectro::lyser? UV (turbidity est, NO3-N, TOC, UV254, NO2) min. 0 0 0 0 0 Sp2-035-p0-sNO-010/-075 (incl. Global Calibration r2) max. 200 15 5 30 70 spectro::lyser? UV (turbidity est, NO3-N, TOC, UV254, NO2) min. 0 0 0 0 0 Sp2-015-p0-sNO-010/-075 (incl. Global Calibration r2) max. 465 35 15 60 165 spectro::lyser? UV (turbidity est, NO3-N, TOC, UV254, NO2-N) min. 0 0 0 0 0 Sp2-005-p0-sNO-010/-075 (incl. Global Calibration r2) max. 1400 100 40 180 500 spectro::lyser? UV-Vis (turbidity, NO3-N, TOC, DOC, UV254, UV254f, hazen-f, hazen-t) min. 0 0 0 0 0 0 0 0 Sp1-015-p0-sNO-010/-075 (incl. Global Calibration r7) max. 465 35 60 45 165 135 1165 700 spectro::lyser? UV-Vis (turbidity, NO3-N, TOC, DOC, UV254, UV254f, hazen-f, hazen-t) min. 0 0 0 0 0 0 0 0 Sp1-005-p0-sNO-010/-075 (incl. Global Calibration r7) max. 1400 100 180 140 500 400 3500 2100 spectro::lyser? UV-Vis (turbidity, NO3-N, TOC, DOC, UV254, UV254f, hazen-f, hazen-t) min. 0 0 0 0 0 0 0 0 Sp1-035-p0-sNO-010/-075 (incl. Global Calibration r7) max. 200 15 30 20 70 55 500 300 Drinking water concentration ranges and sensor/probe type for this application turbidity [NTU/FTU] turbidity est [NTU/FTU] NO3-N [mg/l] NO2-N [mg/l] TOC [mg/l] DOC [mg/l] UV254 [Abs/m] UV254 f [Abs/m] CLD [mg/l] color (app) [Hazen] color (tru) [Hazen] O3 [mg/l] part number spectro::lyser UV (turbidity est, NO2-n, NO3-N, TOC, DOC, UV254) min. 0 0 0 0 0 Sp2-100-p0-sNO-010/-075 (incl. Global Calibration d2) max. 60 7 2 8 25 spectro::lyser UV-Vis (turbidity, NO3-N, TOC, DOC, UV254, UV254f, CLD) min. 0 0 0 0 0 0 0 Sp1-100-p0-sNO-010/-075 (incl. Global Calibration d3) max. 60 7 8 6 25 20 8 spectro::lyser UV-Vis (turbidity, NO3-N, TOC, DOC, UV254, UV254f, O3) min. 0 0 0 0 0 0 0 Sp1-100-p0-sNO-010/-075 (incl. Global Calibration d5) max. 60 7 8 6 25 20 9 spectro::lyser UV-Vis (turbidity, NO3-N, TOC, DOC, UV254, UV254f, hazen-f, hazen-t) min. 0 0 0 0 0 0 0 0 Sp1-100-p0-sNO-010/-075 (incl. Global Calibration d7) max. 60 7 8 6 25 20 105 70   UV-VIS Spectrometer V2 | spectro::lyser
