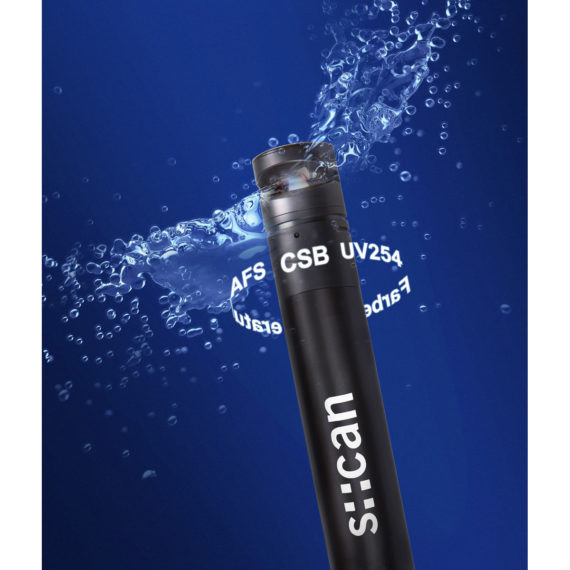

Online Multi-Parameter Photometer | i::scan

Description Online Multi-Parameter Photometer | i::scan technical specification measuring principle 35 mm optical path length: spectrometry combined 180° absorption and 90° scattering turbidity: according to EPA 180.1 and ISO 7027 5 mm optical path length: absorption resolution COD: 0.035 mg/l colour: 0.07 Hazen UV254: 0.105 Abs/m turbidity (35 mm): 0.001 NTU/FTU turbidity (5 mm): 0.01 NTU/FTU (0.1 above 1000 NTU/FTU) colour: 0.01 Hazen UV254: 0.015 Abs/m TOC: 0.01 mg/l accuracy (standard solution) COD: 5 mg /l or /- 2.5 %* colour: 7 Hazen or /- 2.5 %* UV254: 1 Abs/m or /- 2.5 %* (*whichever is greater) turbidity submersed (5 mm): 2 NTU/FTU or /- 5 %* turbidity in flow cell (35 mm):  0.02 NTU/FTU or /- 2.5 %* colour: 1 Hazen or /- 2.5 %* TOC: 0.1 mg/l or /- 2.5 %* UV254: 0.1 Abs/m or /- 2.5 %* (*whichever is greater) (*whichever is greater) automatic compensation instrument dual-beam and 180° path precalibrated ex-works all parameters reference standard distilled water onboard memory 512 MB integrated temperature sensor -20 … 70 °C resolution temperature sensor 0.06 °C integration via con::cube con::lyte con::nect power supply 10 … 18 VDC power consumption (typical) 20 mA @ 12V power consumption (max.) 200 mA @ 12V interface to s::can terminals RS485, MODBUS cable length 7.5 m fixed cable (-075) housing material PEEK, POM-C weight (min.) approx. 330 g dimensions (Ø x l) 35 mm path length: 38.5 x 325 mm 5 mm path length: 38.5 x 295 mm operating temperature 0 … 45 °C storage temperature -20 … 60 °C operating pressure 0 … 6 bar installation / mounting submersed or in a flow cell flow velocity 3 m/s (max.) automatic cleaning with autobrush or compressed air (only possible for version (-075) with fixed cable) permissible pressure: 3 … 6 bar cleaning pressure conformity – EMC 6 bar EN 61326-1 EN 61326-2-3 protection class (-075) IP68 protection class (-000)  IP67 Online Measuring of Waste Water Treatment Plant influent concentration ranges and sensor/probe type for this application TSS [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] colour (app) [Hazen]  colour (tru) [Hazen] part number i::scan_TSS COD_eq min. 0 0 0 Y11-3-i-075 max. 1000 800 900 i::scan_TSS COD_ min. 0 0 0 0 0 Y12-3-i-075 eq Color max. 1000 1500 900 3500 2200 i::scan_TSS Color min. 0 0 0 Y08-1-i-075 max. 1000 3500 2200 i::scan_TSS UV254 min. 0 0 0 Y09-2-i-075 max. 1000 500 400 i::scan_ min. 0 0 0 0 0 Y10-2-i-075 TSS UV254 Color max. 1000 500 400 3500 2200 Online Measuring  of Waste Water Treatment Plant effluent concentration ranges and sensor/probe type for this application TSS [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] UVT10 [%]  colour (app) [Hazen]  colour (tru) [Hazen] part number i::scan_TSS COD_eq min. 0 0 0 Y11-3-e-075 max. 500 500 300 i::scan_TSS COD_ min. 0 0 0 0 0 Y12-3-e-075 eq Color max. 500 500 300 3500 2200 i::scan_TSS Color min. 0 0 0 Y08-1-e-075 max. 500 3500 2200 i::scan_TSS UV254 min. 0 0 0 0 Y09-2-e-075 max. 500 500 400 100 i::scan_ min. 0 0 0 0 0 0 Y10-2-e-075 TSS UV254 Color max. 500 500 400 100 3500 2200 surface water Monitoring concentration ranges and sensor/probe type for this application turbidity [NTU/FTU] TOC [mg/l] DOC [mg/l] UV254 [Abs/m] UV254 f [Abs/m] UVT10 [%]  colour (app) [Hazen]  colour (tru) [Hazen] part number i::scan_NTU/FTU min. 0 Y01-1-r-000 / -075 max. 800 i::scan_NTU/FTU Color min. 0 0 0 Y02-1-r-000 / -075 max. 800 500 500 i::scan_NTU/FTU UV254 min. 0 0 0 25 Y03-2-r-000 / -075 max. 800 70 70 100 i::scan_NTU/ min. 0 0 0 25 0 0 Y04-2-r-000 / -075 FTU UV254 Color max. 800 70 70 100 500 500 i::scan_NTU/FTU TOC_ min. 0 0 0 0 Y05-3-r-000 / -075 eq UV254 max. 800 25 25 70 i::scan_NTU/FTU TOC_ min. 0 0 0 0 0 0 Y06-3-r-000 / -075 eq UV254 Color max. 800 25 25 70 500 500 i::scan_NTU/FTU min. 0 Y13-1-c-075 (5 mm path length) max. 3000 drinking water online monitoring concentration ranges and sensor/probe type for this application Turbidity [NTU/FTU] TOC [mg/l] DOC [mg/l] UV254 [Abs/m] UV254 f [Abs/m] UVT10 [%]  colour (app) [Hazen]  colour (tru) [Hazen] part number i::scan_NTU/FTU min. 0 Y01-1-d-000 / -075 max. 800 i::scan_NTU/FTU Color min. 0 0 0 Y02-1-d-000 / -075 max. 800 500 500 i::scan_NTU/FTU UV254 min. 0 0 0 25 Y03-2-d-000 / -075 max. 800 70 70 100 i::scan_NTU/ min. 0 0 0 0 0 Y04-2-d-000 / -075 FTU UV254 Color max. 800 70 70 500 500 i::scan_NTU/FTU TOC_ min. 0 0 0 0 Y05-3-d-000 / -075 eq UV254 max. 800 25 25 70 i::scan_NTU/FTU TOC_ min. 0 0 0 0 0 0 Y06-3-d-000 / -075 eq UV254 Color max. 800 25 25 70 500 500 Online Multi-Parameter Photometer | i::scan
