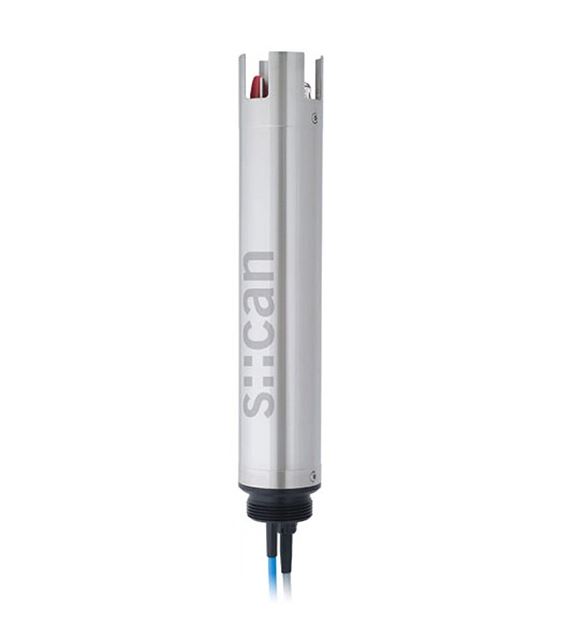

Description Ammonium Sensor | ammo::lyser pro measuring principle ISE measuring principle detail NH4-N: ionophore membrane K: ionophore membrane pH: non-porous reference electrode NO3-N: ionophore membrane measuring range application 0.1 … 1000 mg/l NH4-N (factory precalibrated: 0.1 to 20 mg/l NH4-N) resolution NH4-N: 0.02 19.99 mg/l NH4-N: 20.0 99.9 mg/l NH4-N: 100 1000 mg/l T: 0.1 °C accuracy (standard solution) NH4-N: /-3% of measuring range or /-0.1mg/l* (*whichever is greater) automatic compensation cross sensitivities E-532-pro-xxx: temp, K E-532-pro-pH-xxx: temp, pH, K E-532-pro-NO3-N-xxx: temp, K precalibrated ex-works all parameters response time 60 … 0 sec. integration via con::cube con::nect con::lyte power supply 10 … 30 VDC power consumption (typical) 0.72 W interface to s::can terminals sys plug (IP67), RS485 cable length 7.5 m fixed cable (-075) or plug connection (-000) cable type PU jacket housing material stainless steel 1.4571, POM-C weight (min.) 2.7 kg dimensions (Ø x l) 60 x 326 mm operating temperature 0 … 60 °C operating pressure 0 … 400 mbar installation / mounting submersed or in a flow cell process connection bayonet flow velocity 0.01 m/s (min.) 3 m/s (max.) automatic cleaning media: compressed air permissible pressure: 2 … 4 bar air volume: 3 … 9 l per cleaning cleaning duration: 2 … 10 sec. per cleaning cleaning interval: 30 to 120 min., depending on application delay: 10 to 30 sec. conformity – EMC EN 50081-1 EN 50082-1 EN 60555-2 EN 60555-3 conformity – safety EN 61010-1 storage temperature (electrode) -5 … 30 °C storage temperature (sensor) 0 … 60 °C protection class (-000) IP67 protection class (-075) IP68 Waste Water Ammonium Factory Calibrations municipal WWTP influent concentration ranges and sensor/probe type for this application NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number ammo::lyser III pro (NH4-N, K, temp) min. 10 0 0 E-532-pro-000 / -075 max. 1000 1000 60 ammo::lyser IV pro NO3-N (NH4-N, NO3-N, K, temp) min. 10 0 0 0 E-532-pro NO3-N-000 / -075 max. 1000 500 1000 60 ammo::lyser IV pro pH (NH4-N, pH, K, temp) min. 10 0 2 0 E-532-pro pH-000 / -075 max. 1000 1000 12 60 municipal WWTP aeration concentration ranges and sensor/probe type for this application NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number ammo::lyser III pro (NH4-N, K, temp) min. 0.3 0 0 E-532-pro-000 / -075 max. 30 500 60 ammo::lyser IV pro NO3-N (NH4-N, NO3-N, K, temp) min. 0.3 0 0 0 E-532-pro NO3-N-000 / -075 max. 30 200 500 60 ammo::lyser IV pro pH (NH4-N, pH, K, temp) min. 0.3 0 2 0 E-532-pro pH-000 / -075 max. 30 500 12 60 municipal WWTP effluent concentration ranges and sensor/probe type for this application NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number ammo::lyser III pro (NH4-N, K, temp) min. 0.1 0 0 E-532-pro-000 / -075 max. 10 100 60 ammo::lyser IV pro NO3-N (NH4-N, NO3-N, K, temp) min. 0.1 0 0 0 E-532-pro NO3-N-000 / -075 max. 10 100 100 60 ammo::lyser IV pro pH (NH4-N, pH, K, temp) min. 0.1 0 4 0 E-532-pro pH-000 / -075 max. 10 100 10 60 Clean Water Ammonium Factory Calibrations surface water concentration ranges and sensor/probe type for this application NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number ammo::lyser III pro (NH4-N, K, temp) min. 0.1 0 0 E-532-pro-000 / -075 max. 2 10 30 ammo::lyser IV pro NO3-N (NH4-N, NO3-N, K, temp) min. 0.1 0 0 0 E-532-pro NO3-N-000 / -075 max. 2 200 10 30 ammo::lyser IV pro pH (NH4-N, pH, K, temp) min. 0.1 0 4 0 E-532-pro pH-000 / -075 max. 2 10 10 30 Ammonium Sensor | ammo::lyser pro
