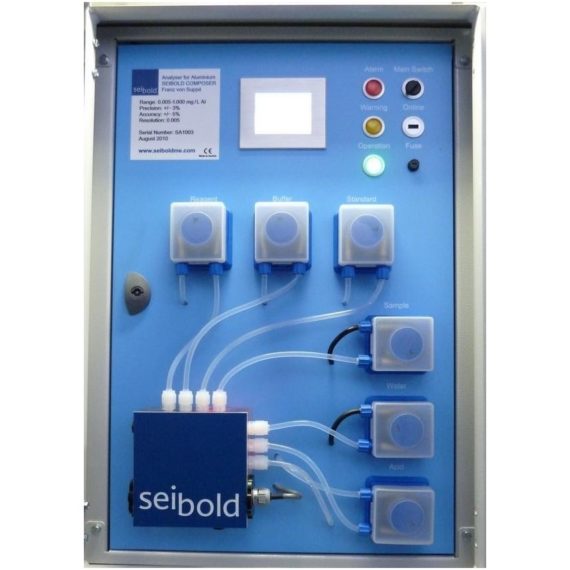

Description Aluminium Analyzer | Franz von Suppe Technical Specification SYSTEM INFORMATION Measurement variable Aluminium (Al) Measurement application Drinking-Water | River Monitoring | Semiconducting Industry, Measurement ranges 0.005 – 1.000 mg/L (ppm) – other ranges possible upon request Accuracy and Precision ± 3 % (based on full scale) Resolution 0.005 mg/L Calibration and cleaning Automated Seibold Reagent kit Buffer and Dye Provided by Sigma Aldrich MEASUREMENT INFORMATION Measurement method Spectrophotometric (LED, detector) Measurement interval Continuous | Discontinuous (programmable, external start) Sample and Reagents consumption per measurement Sample: ~ 75 – 200 ml Seibold Buffer and Reagent: ~ 3 ml ENVIRONMENTAL DATA Ambient operating temperature, sample temperature: 5 to 40°C Ambient operating humidity: Up to 95 % RH non-condensing (below the condensation limit) ELECTRICAL DATA Power supply Supply voltage: 220 – 230 V AC, 50 – 60 Hz (110 V AC or 24 V DC, optional) Power consumption: approx 50 VA Output signal: 4 – 20 mA Screen Colour | TFT | Liquid Crystal Display (LCD) with built-in backlight and brightness adjustment. MAINTENANCE Maintenance interval: 3 months Aluminium Analyzer | Franz von Suppe
