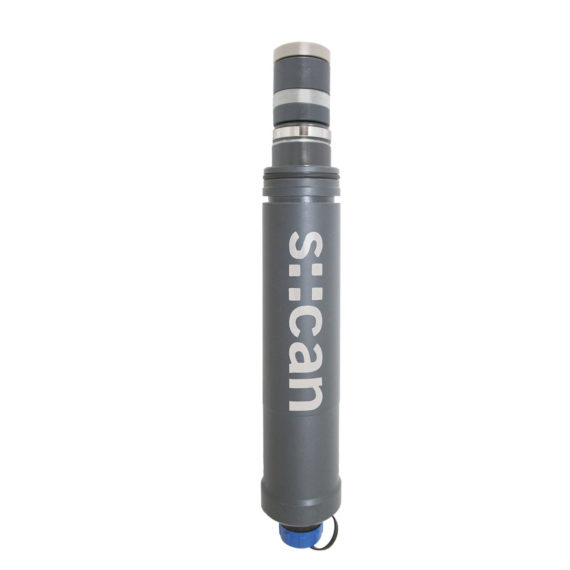

Description Free Chlorine Sensor | Chlori::lyser technical specification measuring principle amperometric measuring principle detail potentiostatic 3-electrode system resolution E-520-1 and E-525-1: 0.001mg/l E-520-2 and E-525-2: 0.01 mg/l) automatic compensation instrument temperature automatic compensation cross sensitivities pH response time 2 min. power supply 9 … 18 VDC power consumption (typical) 0.43 W power consumption (max.) 0.5 W interface to s::can terminals sys plug (IP67), RS485 housing material PVC weight (min.) 175 g dimensions (Ø x l) 35 x 213 mm operating temperature 5 … 45 °C storage temperature 5 … 45 °C operating pressure 0 … 1 bar installation / mounting flow cell process connection quick connect flow velocity 0.015 m/s (min.) 0.06 m/s (max.) pH range FCL 4 … 9 pH range TCL 4 … 12 concentration ranges and sensor/probe type for this application free chlorine[mg/l] total chlorine[mg/l] part number chlori::lyser (FCl) min. 0 E-520-1-000 / 075 max. 2 chlori::lyser (FCl) min. 0 E-520-2-000 / 075 max. 20 chlori::lyser (TCl) min. 0 E-525-3-000 / 075 max. 2 chlori::lyser (TCl) min. 0 E-525-4-000 / 075 max. 20 Chlorine Sensor recommended accessories part number article name D-315-xxx con::cube S-11-xx-moni moni::tool Software F-48-sensor s::can Sensor flow-cell (by-pass setup), PVC F-45-four flow cell for four s::can physical probes F-12-sensor carrier s::can physical probes C-1-010-sensor 1 m connection cable for s::can physical and ISE probes Free Chlorine Sensor | Chlori::lyser
