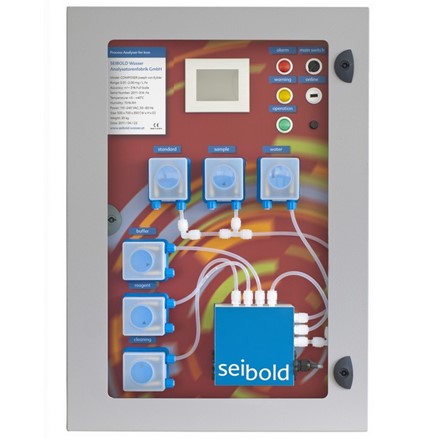

Phosphate Analyser | Marianna Martines

Description Phosphate Analyser | Marianna Martines Technical Specifications SYSTEM INFORMATION Measurement variable Phosphate (PO4)3 Measurement application Drinking water | Wastewater | River monitoring Measurement ranges 0.01 – 10.00 mg/L (ppm) other ranges possible upon request Accuracy and Precision ± 3 % (based on full scale) Resolution 0.01 mg/L Calibration and cleaning Automated Seibold Reagent kit Buffer and Dye Provided by Sigma Aldrich   MEASUREMENT INFORMATION Measurement method Spectrophotometric (LED, detector) Measurement interval Continuous; Discontinuous (programmable, external start) Sample and Reagents consumption per measurement Sample: ~ 75 – 200 ml Seibold Buffer and Reagent: ~ 3 ml ENVIRONMENTAL DATA Ambient operating temperature, sample temperature: 5 to 40°C Ambient operating humidity: Up to 95 % RH non-condensing (below the condensation limit) ELECTRICAL DATA Power supply Supply voltage: 110 – 230 V AC, 50 – 60 Hz (24 V DC, optional) Power consumption: Approx 50 VA Output signal: 4 – 20 mA Screen Color | TFT | Liquid Crystal Display (LCD) with built-in backlight and brightness adjustment. MAINTENANCE Maintenance interval: 3 months Phosphate Analyser | Marianna Martines
