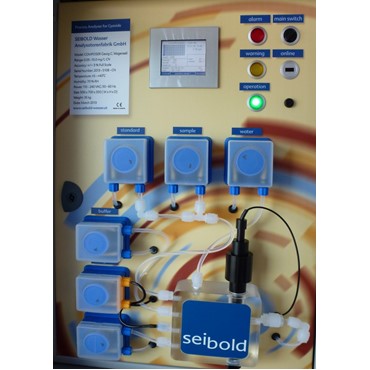

Description Sodium Analyser | Edmund Eysler Technical Specifications SYSTEM INFORMATION Measurement variable Sodium Na – Measurement application Drinking water | River monitoring | wastewater. Measurement ranges 0.1 – 10.000 ppb Na other ranges possible upon request Accuracy and Precision ± 5 % (based on full scale) Resolution 0.1 ppb in low range | 1ppm in high range Calibration and cleaning Automated Seibold Reagent kit None MEASUREMENT INFORMATION Measurement method Ion-Selective Electrode (ISE) Measurement interval Continuous; Discontinuous (programmable, external start) Sample and Reagents consumption per measurement Sample: ~ 75 – 200 ml ENVIRONMENTAL DATA Ambient operating temperature, sample temperature: 5 to 40°C Ambient operating humidity: Up to 95 % RH non-condensing (below the condensation limit) ELECTRICAL DATA Power supply Supply voltage: 110 – 230 V AC, 50 – 60 Hz (24 V DC, optional) Power consumption: Approx 50 VA Output signal: 4 – 20 mA Screen Color | TFT | Liquid Crystal Display (LCD) with built-in backlight and brightness adjustment. MAINTENANCE Maintenance interval: 3 months Sodium Analyser | Edmund Eysler
