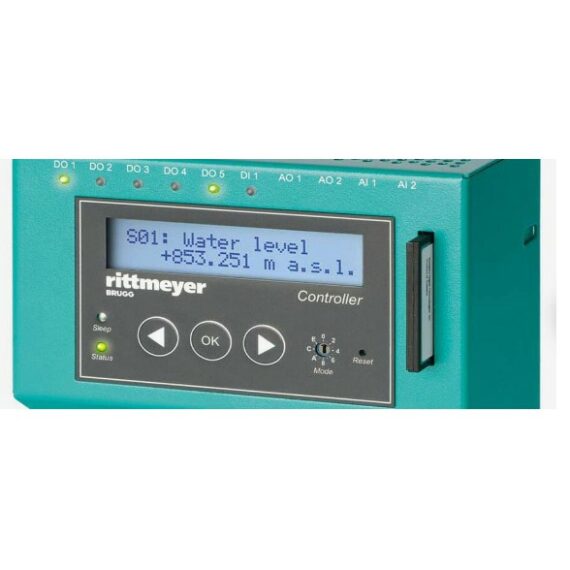

Accurate Dam Level Measurement – Overview This cost-effective, versatile and low-maintenance product is a compact all-in-one pressure measuring solution for a variety of water-based applications. It has up to four measuring points for piezoresistive transmitters which allows for accurate measurements of volume, level, flow, and rake monitoring arrangements. The controller has galvanically isolated inputs and outputs, an integrated web server, and predefined formulas for balls and cylinders providing easy measurement, configurations and diagnostics. Accurate Dam Level Measurement – Features High accuracy of up to ±0.05% Temperature compensation Up to four measurement sections per Controller Immersion probes up to 25 bar / IP68 Transmitters up to 160 bar / IP65 Controller with built-in web server for easy configuration IEC 60870-5-104 and Modbus communication Little drift Maintenance free Simple web browser to connect to the instrument Fits to all standard PLCs Pressure and Temperature measurements in one Excellent price-performance ratio SWISS quality Extremely robust solution
