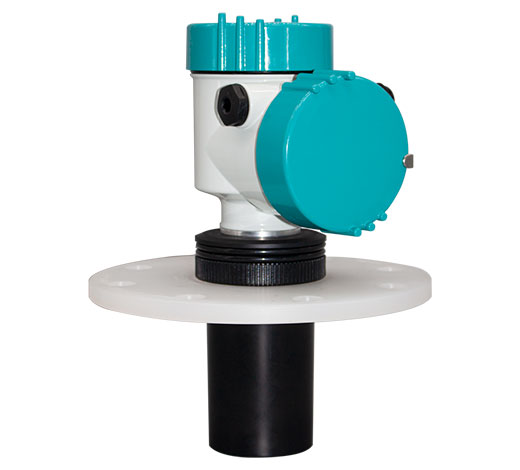

Description Flange Ultrasonic Level Meter | Flange-RWLM Table 1: Flange Ultrasonic Level Meter Technical Parameters Function Compact Type Level Range 4,6,8,10,12,15,20,30m Accuracy 0.5%-1.0% Resolution 3mm or 0.1% Display LCD Display Analog Output Two Wires 4-20mA/250Ω Load Power Supply DC24V Environmental Temperature Transmitter -20~ 60℃ , Sensor -20~ 80℃ Communication HART Protection Class Transmitter IP65(IP67 Optional),Sensor IP68 Probe Installation Flange, Thread Table 2: Flange Ultrasonic Level Meter Model Selection Measure Range 4 4m 6 6m 8 8m 12 12m 20 20m 30 30m License P Standard Type (Non ex-proof) I Intrinsically safe (Exia IIC T6 Ga) Energy Transducer Material/Process Temperature/Protection Grade A ABS/(-40-75)℃/IP67 B PVC/(-40-75)℃/IP67 C PTFE/(-40-75)℃/IP67 Process Connection/Material G Thread D Flange /PP Electronic Unit 2 4~20mA/24V DC Two Wire 3 4 20mA/24V DC /HART Two Wire 4 4-20mA/24VDC/RS485 Modbus Four Wire 5 4-20mA/24VDC/Alarm Output Four Wire Shell / Protection Grade L Aluminum / IP67 Cable Entry N 1/2 NPT Programmer/Display 1 With Display Flange Ultrasonic Level Meter | Flange-RWLM
