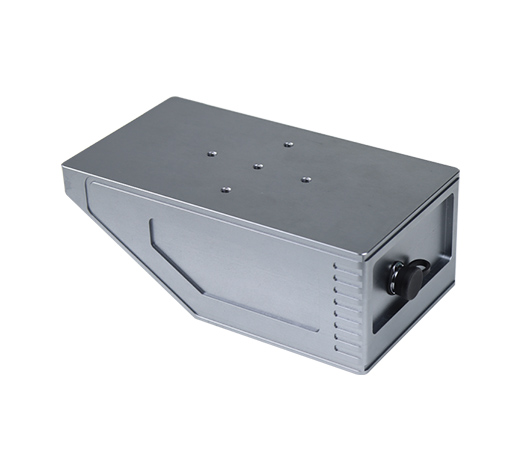

Description Open Channel Radar Flowmeter | RWRadarFlow Table 1: Working Condition Parameters Parameter Description Supply Voltage DC 7 ～ 24V Current(12V Power Supply) About 300mA in normal operation, and less than 1mA in sleep mode. Working Temperature -35℃ ～ 70℃ Protection Class IP67 Emission Frequency 24.000 ～ 24.250GHz Communication Interface RS-232 / RS-485 Communication Protocol MODBUS-RTU / Customised Protocol / SZY206-2016 “Water Resources Monitoring Data Transmission Protocol” Table 2: Measurement Parameters Parameter Description Velocity Range 0.15 ～ 15m/s Velocity Accuracy ±1% FS, ±2.5% of reading Velocity Resolution 0.01m/s Distance Range 1.5 ～ 40m Distance Accuracy ±1cm Distance Resolution 1mm Antenna Beam Angle Flow Velocity：14 x 32 Water level：11 x 11 Interval Time 1 ～ 5000mi Table 3: Appearance Parameters Parameter Description Flow meter Size ( LxWxH) 302×150×156mm Support Size ( LxWxH) 100×100×100mm Weight flow meter support： 5.8kg Housing Material Galvanised, stainless steel sheet Open Channel Radar Flowmeter | RWRadarFlow
