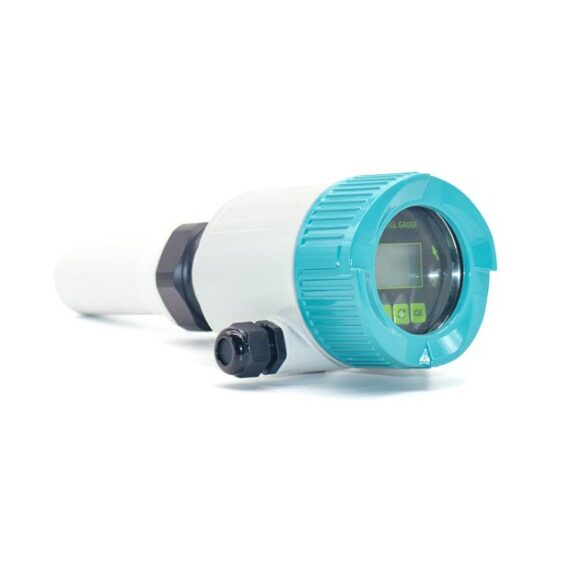

Description Anti-Corrosion Radar Level Meter | QT 901 Table 1: Technical Data For Radar Level Meter Explosion-proof Grade Exia IIC T6 Ga Measuring Range 10 meters Frequency 26 GHz Temperature: -60℃~ 150℃ Measurement Precision ±2mm Process Pressure -0.1~4.0 MPa The Signal Output 2.4-20mA, HART, RS485 The Scene Display Four digital LCD Shell Aluminum Connection Flange (optional)/Thread Protection Grade IP65 Table 2: Drawing For 901 Radar Level Meter Table 3: Model Choose Of Radar Level Meter RD91 X X X X X X X X License Standard (Non-explosion-proof) P Intrinsically safe (Exia IIC T6 Ga) I Intrinsically safe type, Flameproof (Exd (ia) IIC T6 Ga) G Antenna Type / Material / Temperature Sealing horn / PTEE / -40… 120 ℃ F Process Connection / Material Thread G1½″A G Thread 1½″ NPT N Flange DN50 / PP A Flange DN80 / PP B Flange DN100 / PP C Special Custom-tailor Y The Outlet Pipe Length of the Container Outlet pipe 100mm A Outlet pipe 200mm B The Electronic Unit (4~20) mA / 24V DC / Two wire system 2 (4~20) mA / 24V DC / Four wire system 3 (4~20) mA / 24V DC / HART two-wire system 4 (4~20) mA / 220V AC / Four wire system 5 RS485 / Modbus 6 Shell / Protection Grade Aluminum / IP67 L Stainless Steel 304 / IP67 G Cable Line M 20×1.5 M ½″ NPT N Field Display/The Programmer With A Without X Anti-Corrosion Radar Level Meter | QT 901
