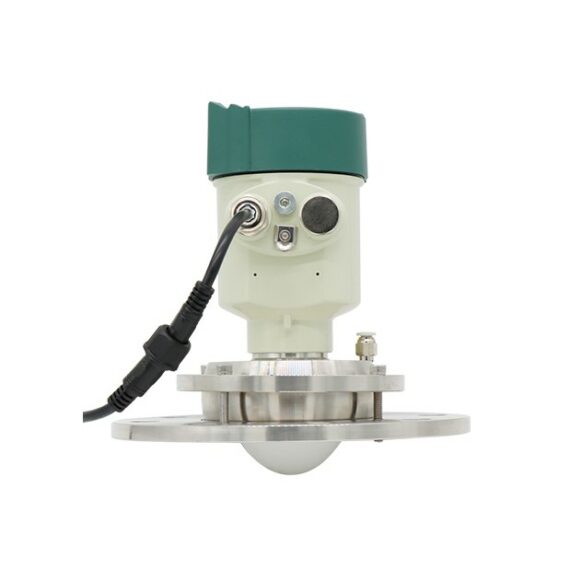

High-Frequency Radar Level Meter | RD800

$34.49 $59.32
Description High-Frequency Radar Level Meter | RD800 Frequency 76GHz ~ 81GHz,  5GHz FMCW bandwidth Measuring range x0: 0.3 m ~ 60m x1: 0.08m~30m x2: 0.6m ~ 120m Measurement accuracy ±1mm Beam angle 3°/6° Minimum measured dielectric constant >=2 Power 15~28VDC Communication 2x: MODBUS 3x: HART/Series Signal output 2x: 4 ~ 20mA or RS-485 3x: 4~20mA Fault output 3.8mA, 4mA, 20mA, 21mA, hold Field operation/programming 128 × 64 dot matrix display / 4 buttons PC software Bluetooth  humidity ≤95%RH Enclosure Aluminium alloy, stainless steel Antenna type Lens antenna/anti-corrosive antenna/flange isolated by quartz Process temperature T0:-40~85℃; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃ Process pressure -0.1~2MPa Product Size Ø100*270mm Cable entry M20*1.5 Recommended cables AWG18 or 0.75mm² Protection class IP67 Explosion-proof grade ExdiaIICT6 Installation method Thread or flange Weight 2.480Kg/2.995Kg Packing box size 370*270*180mm High-Frequency Radar Level Meter | RD800
