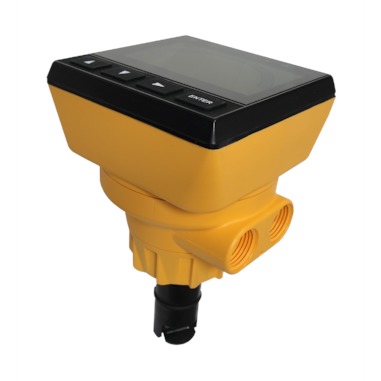

Signet Paddlewheel Flow Integral Systems | 9900

Description Signet Paddlewheel Flow Integral Systems | 9900 General Input Channels One Input Types Digital (S3 L) Serial ASCII, TTL level, 9600 bps Frequency Range 0.5 to 1500 Hz Accuracy 0.5% of reading Measurement Types Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, Batch or user-defined (via 8058) Enclosure and Display Case Material PBT Window Shatter-resistant glass Keypad 4 buttons, injection-moulded silicone rubber seal Display Backlit, 7 and 14-segment Update Rate 1 s LCD Contrast 5 settings Indicators “Dial-type” digital bar graph. LEDs for open collector, relays and warning indicator Enclosure Size ¼ DIN Mounting 9900-1P Panel ¼ DIN, ribbed on four sides for panel mounting clip inside panel, silicon gasket included. Optional rear enclosure with flat cover available for waterproof protection when installed inside a panel. Wall Options include 9900-1P installed in pre-wired NEMA enclosure, wall mount enclosure or inside of rear enclosure with hinged cover. (USA Only) Pipe Optional Rear Enclosure with hinged cover and 9900-1P for pipe mount installation Mounting 9900-1 Field (Integral) Options include yellow universal or integral kits for installation with sensor Display Ranges pH 0.00 to 15.00 pH pH Temperature -99 °C to 350 °C -146 °F to 662 °F ORP -1999 to 1999 mV Flow Rate -9999 to 99999 units per second, minute, hour or day Totalizer 0.00 to 99999999 units Conductivity 0.0000 to 99999 μS, mS, PPM and PPB (TDS), kΩ, MΩ Conductivity Temperature -100 °C to 250 °C -148 °F to 350 °F (application and sensor dependent) Temperature -99 °C to 350 °C -99 °F to 350 °F Pressure -40 to 1000 psi Level -9999 to 99999 m, cm, ft, in, % Volume 0 to 99999 cm3, m3 , in3, ft3 , gal, L, lb, kg, % Salinity 0 to 99.97 PPT Dissolved Oxygen PPM 0-50, % SAT 0-200, 0 to 999.9 TORR Dissolved Oxygen Temperature -99 °C to 350 °C -99 °F to 350 °F Environmental Ambient Operating Temp Backlit LCD -10 °C to 70 °C 14 °F to 158 °F Storage Temperature -15 °C to 70 °C 5 °F to 158 °F Relative Humidity 0 to 100% condensing for field mount; 0 to 95% non-condensing for panel mount Maximum Altitude 4,000 m (13,123 ft) Enclosure Rating NEMA 4X/IP65 (front face only on panel mount); field mount is 100% NEMA 4X/IP65 when used with universal or integral installation kits Electrical Requirements Power to Sensors Voltage 4.9 to 5.5 VDC @ 25 °C, regulated Current 1.5 mA max in loop power mode (up to 2.0 mA with 24 V @ 300 ? max. loop impedance); 20 mA max when using DC power Short Circuit Protected Isolation Low voltage (< 48V AC/DC) to loop with DC power connected No isolation when using loop power only Terminal Blocks Pluggable screw type 14 AWG max wire gauge Input Power DC 10.8 to 35.2 VDC, regulated 9900 without Relay Module 200 mA @ 10.8 VDC to 35.2 VDC 9900 with Relay Module 300 mA @ 10.8 VDC to 35.2 VDC Overvoltage Protection 48 Volt Transient Protection Device Current limiting for circuit protection Reverse-Voltage Protection Loop Power Loop Power Only Max. Loop Impedance 50 Ω @ 12 V 325 Ω @ 18 V 600 Ω @ 24 V With DC Power Input or with 2nd loop, all the time Max. Loop Impedance 250 Ω @ 12 V 500 Ω @ 18 V 750 Ω @ 24 V Relay Specifications Dry Contact Relays (2) Open Collector (1) Type SPDT N/A Form C N/A Maximum Current Rating 5 A resistive 50 mA DC Maximum Voltage Rating 30 VDC or 250 VAC 30 VDC Hysteresis Adjustable (absolute in engineering units) (EUs) Latch Reset in test screen only Delay 9999.9 seconds (max.) Test Mode Set On or Of Cycle Time 99999 seconds (max.) Maximum Pulse Rate 300 pulses/minute Proportional Pulse 400 pulses/minute Volumetric Pulse Width 0.1 to 3200 s Pulse Width Modulation 0.1 to 320 s Input Types Digital (S3 L) or AC frequency 4 to 20 mA input via the 8058-1 pH/ORP input via the Digital (S3 L) output from the 2751 pH/ORP Sensor Electronics Raw Conductivity/Resistivity input directly from Signet Conductivity/Resistivity electrodes via Direct Conductivity/ Resistivity Module or via 2850 Input Specifications Digital (S3 L) Serial ACSII, TTL level, 9600 bps Frequency Input Sensitivity 80 mV @ 5 Hz, gradually increasing with frequency Span 0.5 Hz to 1500 Hz @ TTL level input Accuracy ± 0.5% or reading max error @ 25 °C Resolution 1 μA Repeatability ± 0.2% of reading Power Supply Rejection ±1 μA per volt Short Circuit Protected Update Rate (1/frequency) 150 ms (1/frequency) 150 ms Accuracy Conductivity /- 2% of Reading Temperature 0.5 °C Resolution Conductivity 0.1% of Reading Output Specifications Current Output – One (1); Two (2) with 4 to 20 mA Output Module Current Loop Output Standard ANSI-ISA 50.00.01 Class H Current Output 4 to 20 mA, isolated, fully adjustable and reversible Span 3.8 to 21 mA Zero 4.0 mA factory set; user programmable from 3.8 to 5.0 mA Full Scale 20.00 mA factory set; user programmable from 19.0 to 21.0 mA Accuracy ±32 μA max. error @ 25 °C @ 24 VDC Resolution 6 μA or better Temperature Drift ±1 μA per °C Power Supply Rejection ±1 μA per V Isolation Low voltage ( Voltage 12 to 32 VDC ±10% Maximum Impedance (with DC power input) 250 Ω @ 12 VDC 500 Ω @ 18 VDC 750 Ω @ 24 VDC Maximum Impedance (no DC power input) 50 Ω @ 12 VDC 325 Ω @ 18 VDC 600 Ω @ 24 VDC Update Rate 150 mS nominal Short circuit and reverse polarity protected Adjustable Span Reversible Error Condition Selectable error condition 3.6 or 22 mA Actual update rate determined by sensor type Test Mode Increment to desired current (range 3.8 to 21.00 mA) Standards and Approvals CE, UL, CUL, FCC RoHS Compliant, China RoHS Lloyd’s Register Manufactured under ISO 9001, ISO 14001 and ISO 45001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety Refer to Models 515/8510, 2536/8512 and 9900 technical specifications for more details on these products MFR # Pipe Size(inch) Code Pin / Body 3-9900-1 w/ 3-8510-P0 0.5 – 4.0 159001733 Titanium/ PP 3-9900-1 w/ 3-8510-H0 0.5 – 4.0 159001734 Hastelloy-C / PP 3-9900-1 w/ 3-8510-S0 0.5 – 4.0 159001735 Natural PVDF / PP 3-9900-1 w/ 3-8510-V0 0.5 – 4.0 Special via DZS Hastelloy-C / Natural PVDF 3-9900-1 w/ 3-8510-T0 0.5 – 4.0 159001736 Natural PVDF ; Natural PVDF 3-9900-1 w/ 3-8510-P1 5.0 to 8.0 159001737 Titanium / PP 3-9900-1 w/ 3-8512-P0 0.5 – 4.0 159001738 Titanium / PP 3-9900-1 w/ 3-8512-H0 0.5 – 4.0 159001739 Hastelloy-C / PP 3-9900-1 w/ 3-8512-S0 0.5 – 4.0 159001740 Natural PVDF / PP 3-9900-1 w/ 3-8512-V0 0.5 – 4.0 159001741 Hastelloy-C / Natural PVDF 3-9900-1 w/ 3-8512-T0 0.5 – 4.0 159001742 Natural PVDF / Natural PVDF 3-9900-1 w/ 3-8512-P1 5.0 to 8.0 159001743 Titanium / PP Signet Paddlewheel Flow Integral Systems | 9900
