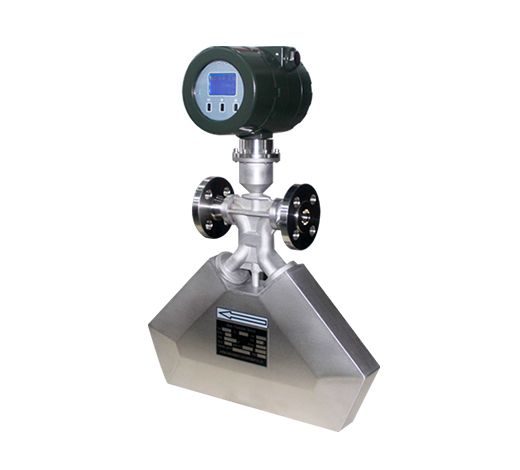

Coriolis Flow Meter | RWCMF

Description Coriolis Flow Meter | RWCMF Table 1: Coriolis Mass Flow Meter Parameters Flow accuracy ±0.2% Optional ±0.1% Diameter DN3~DN200mm Flow repeatability ±0.1~0.2% Density measuring 0.3~3.000g/cm3 Density accuracy ±0.002g/cm3 Temperature measuring range -200~300℃ (Standard Model -50~200℃) Temperature accuracy /-1℃ Output of current loop 4~20mA; Optional signal of flow rate/Density/Temperature Output of frequency/pulse 0~10000HZ; Flow signal (Open collector) Communication RS485, MODBUS protocol Power supply of transmitter 18~36VDC power≤7W or 85~265VDC power 10W Protection class IP67 Material Measuring tube SS316L housing:SS304 Pressure rating 4.0Mpa (Standard pressure) Explosion-proof Exd(ia) IIC T6Gb Environment Specifications Ambient temperature -20~-60℃ Environment humidity ≤90%RH Table 2: Coriolis Mass Flow Meter Dimension Model A B C D E NW(only sensor) mm mm mm mm mm kg HTCMF-020 250 448 500 89 233 17 HTCMF-025 550 500 445 108 238 17.5 HTCMF-032 550 500 445 108 240 24 HTCMF-040 600 760 500 140 245 32 HTCMF-050 600 760 500 140 253 36 HTCMF-080 850 1050 780 220 315 87.5 HTCMF-100 1050 1085 840 295 358 165 HTCMF-150 1200 1200 950 320 340 252 HTCMF-200 1200 1193 1000 400 358 350   Model A B C D E Nw mm mm mm mm mm kg HTCMF-003 178 176 250 54 244 48 HTCMF-006 232 263 360 70.5 287 8.1 HTCMF-00B 232 275 395 70.5 290 82 HTCMF-010 95 283 370 70.5 242 65 HTCMF-015 95 302 405 70.5 242 65 Table 3: Coriolis Mass Flow Meter Flow Range Specification DN (mm) Flow range (kg/h) Zero stability, kg/h NW (kg) GW (kg) 0.2% 0.15% 0.1% RWCMF-003 3 0~96~120 0.018 0.012 0.012 8 19 RWCMF-006 6 0~540~660 0.099 0.066 0.066 12 22 RWCMF-008 8 0~960~1200 0.18 0.12 0.12 12 23 RWCMF-010 10 0~1500~1800 0.27 0.18 0.18 11 24 RWCMF-015 15 0~3000~4200 0.63 0.42 0.42 12 25 RWCMF-020 20 0~6000~7800 1.17 0.78 0.78 20 34 RWCMF-025 25 0~10200~13500 2.025 1.35 1.35 21 35 RWCMF-032 32 0~18000~24000 3.6 2.4 2.4 27 45 RWCMF-040 40 0~30000~36000 5.4 3.6 3.6 35 55 RWCMF-050 50 0~48000~60000 9 6 6 40 60 RWCMF-080 80 0~120000~160000 24 16 16 90 150 RWCMF-100 100 0~222000~270000 40.5 27 27 170 245 RWCMF-150 150 0~480000~600000 90 60 60 255 350 Table 4: Coriolis Mass Flow Meter Mode Selection RWCMF XXX X X X X X X X X X Calibre (mm) DN3mm-DN200 mm Nominal Pressure 0.6Mpa 1 1.0Mpa 2 1.6Mpa 3 2.5Mpa 4 4.0Mpa 5 Others 6 Connection Flange 1 Tri-clamp(Sanitary) 2 Thread 3 Others 4 Accuracy 0.1 1 0.2 2 Temperature – 200℃～200℃ 1 -50℃～200℃ 2 -50℃～300℃ 3 Structure Type Compact/Integral 1 Remote 2 Power Supply AC220V A DC24V D Output Signal 4-20mA/Pulse,RS485  A 4-20mA,HART B Others C Ex-proof Without Ex-proof 0 With Ex-proof 1 Process Connection DIN PN10 1 DIN PN16 2 DIN PN25 3 DIN PN40 4 ANSI 150# A ANSI 300# B ANSI 600# C JIS 10K D JIS 20K E JIS 40K F Others G Coriolis Flow Meter | RWCMF
