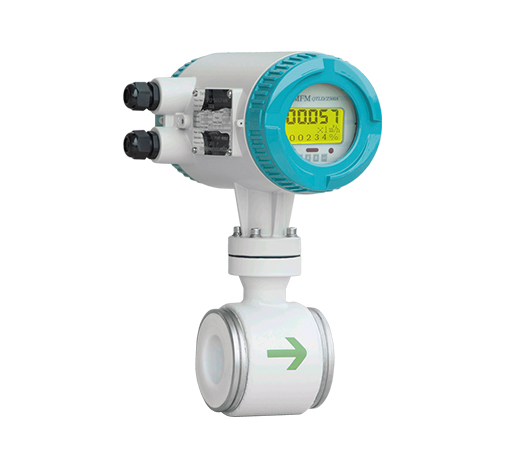

Wafer Electromagnetic Flow Meter | RWEM/W

Description Wafer Electromagnetic Flow Meter | RWEM/W Table 1: Wafer Electromagnetic Flow Meter Specification Size DN25mm-DN200mm Nominal Pressure 1.6Mpa Accuracy ±0.5%(Standard) ±0.3% or ±0.2%(Optional) Liner PTFE, FEP, PFA Electrode SUS316L, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum-iridium Structure Type Integral type, remote type, submersible type, ex-proof type Medium Temperature -20~ 60degC (Integral type) Remote type (PTFE/PFA/FEP) -10~ 160degC Ambient Temperature -20~ 60degC Ambient Humidity 5~90%RH(relative humidity) Measuring Range 0.5m/s-15m/s Conductivity >5us/cm Protection Class IP65 (Standard); IP68 (Optional for remote type) Output Signal 4-20mA, pulse/frequency, relay Communication MODBUS RTU RS485, HART (Optional), GPRS/GSM (Optional) Power Supply  AC220V(Can be used for AC85-250V) DC24V(Can be used for DC20-36V) DC12V(Optional),Battery Powered 3.6V(Optional) Power Consumption <20W Explosion Proof ATEX Exdll T6Gb Table 2: Wafer Electromagnetic Flow Meter Flow Range Size Flow Range & Velocity Table (mm) 0.1m/s 0.2m/s 0.5m/s 1m/s 4m/s 10m/s 12m/s 15m/s 25 0.177 0.353 0.883 1.766 7.065 17.663 21.2 26.494 32 0.289 0.579 1.447 2.894 11.575 28.938 34.73 43.407 40 0.452 0.904 2.261 4.522 18.086 45.216 54.26 67.824 50 0.707 1.413 3.533 7.065 28.260 70.650 84.78 105.98 65 1.19 2.39 5.97 11.94 47.76 119.40 143.3 179.10 80 1.81 3.62 9.04 18.09 72.35 180.86 217.0 271.30 100 2.83 5.65 14.13 28.26 113.04 282.60 339.1 423.90 125 4.42 8.83 22.08 44.16 176.63 441.56 529.9 662.34 150 6.36 12.72 31.79 63.59 254.34 635.85 763.0 953.78 200 11.3 22.61 56.52 113.04 452.16 1130.40 1356 1696 Suggest Velocity: 0.5m/s – 15m/s Table 3: Wafer Electromagnetic Flow Meter Size Diameter φA(mm) φB(mm) φC(mm) H(mm) L(mm) DN25 60.5 68 22 295 100 DN32 68.5 76 30 303 100 DN40 74.5 89 36 316 100 DN50 90.8 102 48 329 100 DN65 109.8 119.5 64 346.5 150 DN80 120.7 133 77 360 150 DN100 150.2 159 102 386 150 DN125 174.8 190 121 417 200 DN150 204.7 219 147 446 200 DN200 257.8 273 207 500 200 Wafer Electromagnetic Flow Meter | RWEM/W
