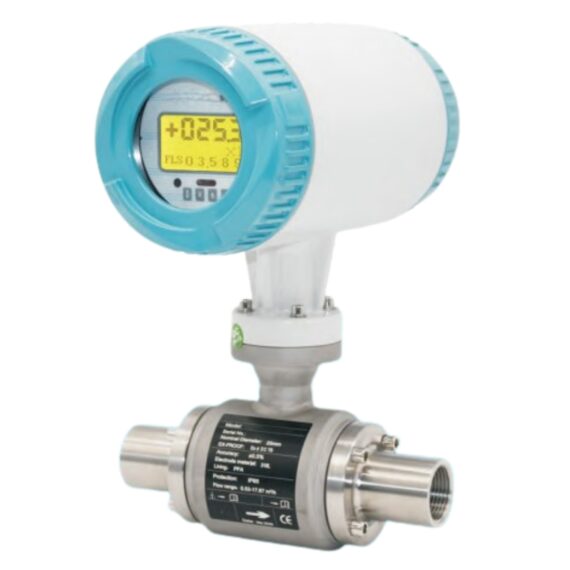

Thread Electromagnetic Flow Meter | RWEM/L

Description Thread Electromagnetic Flow Meter | RWEM/L Size DN15-DN200 (1/2″-8″) Accuracy ±0.5% of reading at flow rate ≥ 0.5m/s, ±0.2% optional at flow velocity ≥ 0.5m/s Velocity 0.1~15 m/s Repeatability ≤0.17% Structure Compact/remote, cable length 10m standard, 100m max Conductivity > 5 μS/cm, demineralised water > 20 µS/cm Protection Grade Transmitter: IP65 standard , IP67 optional Sensor: IP65 std, IP68 (submersible, only available for remote type) Electrode SS316L Power Supply 85~250 VAC (50/60 HZ), 20~36 VDC Power Consumption <20W Signal Output Analog 4~20mA ( load resistor 0~750Ω) Frequency Forward & reverse flow output with a frequency range of 1~5000Hz Alarm Two isolated open collector transistor (OCT) outputs for alarm signals Communication RS485 MODBUS standard, HART, GPRS, PROFIBUS optional Display LCD Display,128X128mm, three lines, 4 buttons Ambient Temperature -20℃~60℃ Fluid Temperature Compact: -20℃ ~80℃, Remote: -20℃ ~120℃ Liner material PFA Sensor Material Measuring tube: SS304 Tri-clamp & housing: SS304 standard, SS316 optional Transmitter Material Aluminium alloy with epoxy painting Nominal Pressure 1.6 Mpa Display Instantaneous flow, total flow, flow velocity Function High and low alarm, empty pipe alarm, exciting alarm, self-diagnosis Totalizer Three built-in totalizers: forward flow, reverse flow and net flow Display Unit L/s, L/m, L/h, m /s, m /m, m /h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h Language English, Chinese, Italian, Portuguese, French, Spanish, Korean Process Connection Male thread, female standard, G thread standard, NPT, BSP and other thread standard can be customised Thread Electromagnetic Flow Meter | RWEM/L
