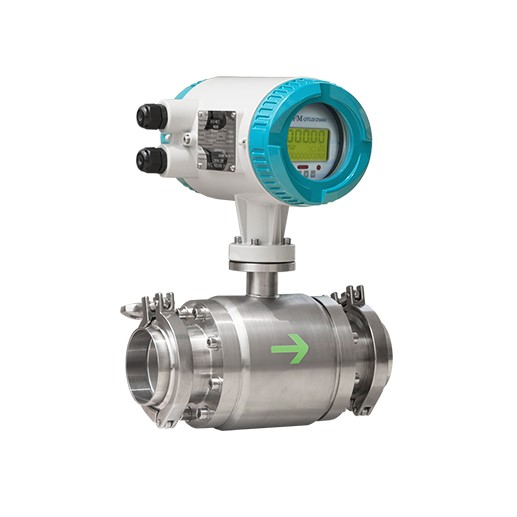

Tri-clamp Electromagnetic Flow Meter | RWEM/T

Description Tri-clamp Electromagnetic Flow Meter | RWEM/T Table 1: Tri-clamp Electromagnetic Flow Meter Parameters Size DN15mm-DN200mm Nominal Pressure 1.6Mpa Accuracy ±0.5%(Standard) ±0.3% or ±0.2%(Optional) Liner FEP, PFA Electrode SUS316L, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum-iridium Structure Type Integral type, remote type, submersible type, ex-proof type Medium Temperature -20~ 60degC(Integral type) Remote type(PFA/FEP) -10~ 160degC Ambient Temperature -20~ 60degC Ambient Humidity 5~90%RH(relative humidity) Measuring Range Max 15m/s Conductivity >5us/cm Protection Class IP65(Standard); IP68(Optional for remote type) Output Signal 4-20mA pulse frequency relay Communication MODBUS RTU RS485, HART(Optional), GPRS/GSM(Optional) Power Supply  AC220V(Can be used for AC85-250V) DC24V(Can be used for DC20-36V) DC12V(Optional),Battery Powered 3.6V(Optional) Power Consumption <20W Explosion Proof ATEX Exdll T6Gb Table 2: Tri-clamp Electromagnetic Flow Meter Electrode Material Selection Electrode material Applications SUS316L Applicable in water, sewage and low corrosive mediums. Widely used in industries of petrol, chemistry, carbamide,etc Hastelloy B Having strong resistance to hydrochloric acid of any consistance which is below boiling point. Resistable against vitriol, phosphate, hydrofluoricacid, organic acid etc which are oxidable acid, alkali and non-oxidable salt. Hastelloy C Be resistant to oxidable acid such as nitric acid, mixed acid as well as oxidable salt such as Fe , Cu and sea water. Titanium Applicable in seawater, and kinds of chloride, hypochlorite salt, oxidable acid (including fuming nitric acid), organic acid, alkali etc. Not resistant to a pure reducing acid (such as sulphuric acid, hydrochloric acid) corrosion. But if acid contains antioxidant(such as Fe , Cu ) is greatly reduces corrosion. Tantalum Having strong resistance to corrosive mediums that is similar with glass. Applicable to most chemical mediums. Except for hydrofluoric acid, oleum and alkali. Platinum-iridium Applicable to most chemical mediums except for ammonium salt. Table 3: Tri-clamp Electromagnetic Flow Meter Sizing Chart Diameter φA(mm) φB(mm) φC(mm) φD(mm) φE(mm) H(mm) L(mm) DN15 50.5 43.5 16 76 2.85 303 200 DN20 50.5 43.5 19 83 2.85 310 200 DN25 50.5 43.5 24 83 2.85 310 200 DN32 50.5 43.5 31 94 2.85 321 200 DN40 50.5 43.5 35 94 2.85 321 200 DN50 64 56.5 45 108 2.85 335 200 DN65 77.5 70.5 59 115 2.85 342 250 DN80 91 83.5 72 135 2.85 362 250 DN100 119 110 98 159 2.85 386 250 DN125 145 136 129 183 3.6 410 300 DN150 183 174 150 219 3.6 446 300 DN200 233.5 225 199 261 3.6 488 350 Table 4: Tri-clamp Electromagnetic Flow Meter Sizing Chart Flow Range ( Unit: m³/h ) Size Flow Range & Velocity Table (mm) 0.1m/s 0.2m/s 0.5m/s 1m/s 4m/s 10m/s 12m/s 15m/s 15 0.064 0.127 0.318 0.636 2.543 6.359 7.630 9.538 20 0.113 0.226 0.565 1.130 4.522 11.304 13.56 16.956 25 0.177 0.353 0.883 1.766 7.065 17.663 21.2 26.494 32 0.289 0.579 1.447 2.894 11.575 28.938 34.73 43.407 40 0.452 0.904 2.261 4.522 18.086 45.216 54.26 67.824 50 0.707 1.413 3.533 7.065 28.260 70.650 84.78 105.98 65 1.19 2.39 5.97 11.94 47.76 119.40 143.3 179.10 80 1.81 3.62 9.04 18.09 72.35 180.86 217.0 271.30 100 2.83 5.65 14.13 28.26 113.04 282.60 339.1 423.90 125 4.42 8.83 22.08 44.16 176.63 441.56 529.9 662.34 150 6.36 12.72 31.79 63.59 254.34 635.85 763.0 953.78 200 11.3 22.61 56.52 113.04 452.16 1130.40 1356 1696 Suggested Velocity: 0.5m/s – 15m/s Tri-clamp Electromagnetic Flow Meter | RWEM/T
