SS High Performance Paddlewheel Flow Sensor | Signet 2540
$13.69
$26.01

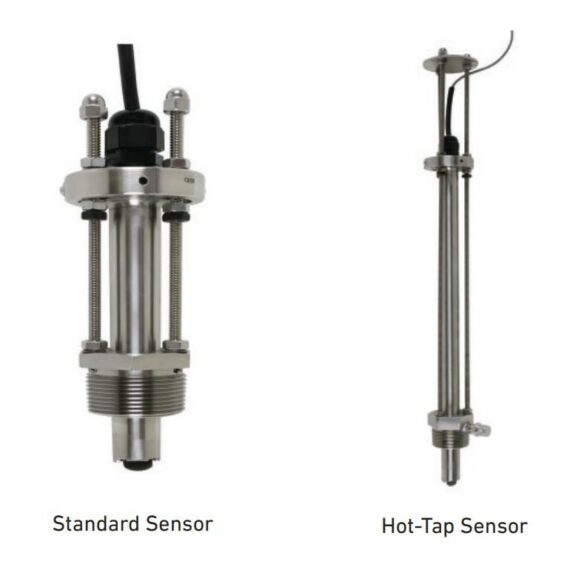

Description SS High Performance Paddlewheel Flow Sensor | Signet 2540 Specifications General Operating Range 0.1 to 6 m/s Pipe Size Range Standard Version DN40 to DN600 1½ to 24 in. Hot-Tap Version DN40 to DN900 1½ to 36 in. Sensor Fitting Options 1½ in. NPT threads ISO 7/1-R 1.5 threads Linearity ±1% of full range Repeatability ±0.5% of full range Min. Reynolds Number Required 4500 Wetted Materials Body 316 stainless steel (1.4401) Fitting 316 stainless steel (1.4401) Fitting O-rings FKM, optional EPR (EPDM) Rotor 17-4PH-1 Stainless Steel Rotor Pin Tungsten Carbide GRP 1 (standard) stainless steel (optional) Retainers (2) 316 stainless steel (1.4401) Rotor Bearings (2) Carbon fibre reinforced PTFE Electrical Frequency 49 Hz per m/s nominal 15 Hz per ft/s nominal Power 5 to 24 VDC ±10%, regulated, 1.5 mA max. Output Type Open collector, sinking, max 10.0 mA Cable Length 7.6 m (25 ft), can be extended up to 305 m (1,000 ft) Cable Type 2-conductor twisted-pair with shield, 22 AWG Max. Temperature/Pressure Rating Sensor with standard FKM sensor fitting O-rings 17 bar @ 82 °C 250 psi @ 180 °F Sensor with optional EPR (EPDM) sensor fitting O-rings 17 bar @ 100 °C 250 psi @ 212 °F Operating Temperature -18 °C to 100 °C 0 °F to 212 °F Shipping Weight 3-2540-1/-2/-1S/-2S 1.79 kg 3-2540-3/-4/-3S/-4S 2.15 kg Standards and Approvals CE, FCC RoHS compliant, China RoHS Manufactured under ISO 9001 for Quality and ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety SS High Performance Paddlewheel Flow Sensor | Signet 2540
