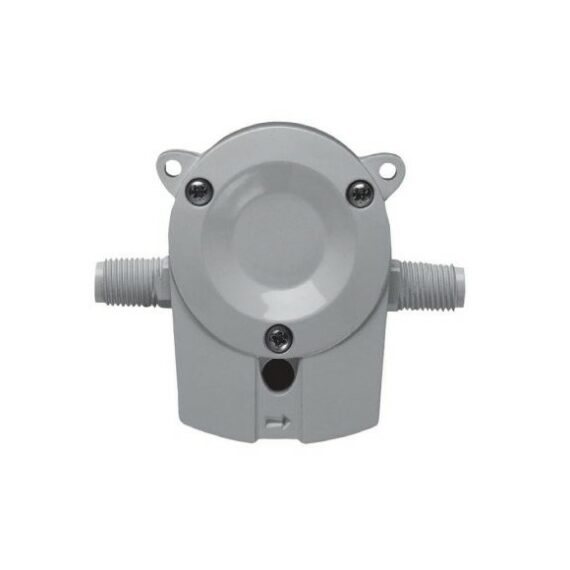

Description Micro Flow Rotor Sensor | Signet 2000 Specifications General Operating Range -11 & -12 version 0.11 to 2.6 lpm 0.03 to 0.7 U.S. gpm -21 & -22 version 1.13 to 12.11 lpm 0.3 to 3.2 U.S. gpm Linearity ±1.2% of full range Repeatability ±0.5% of full range Connections ¼ in. NPT (male) or ISO 7/1 – R1/4 (male) Wetted Materials Sensor Body and Cover 40% glass filled Polyphenylene Sulfide (PPS) Rotor PEEK®, natural, unfilled Cover O-ring FKM Electrical Power 5 to 24 VDC ±10%, regulated, 10 mA max. Output Type Open-collector, sinking, 20 mA max. Cable Length 7.6 m (25 ft), can be extended up to 305 m (1000 ft) Cable Type 2-conductor twisted pair w/shield, 22 AWG Max. Temperature/Pressure Rating 0 °C to 80 °C @ 5.5 bar max. 32 °F to 176 °F @ 80 psi max. Shipping Weight 0.03 kg Standards and Approvals Manufactured under ISO 9001 for Quality and ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety Micro Flow Rotor Sensor | Signet 2000
