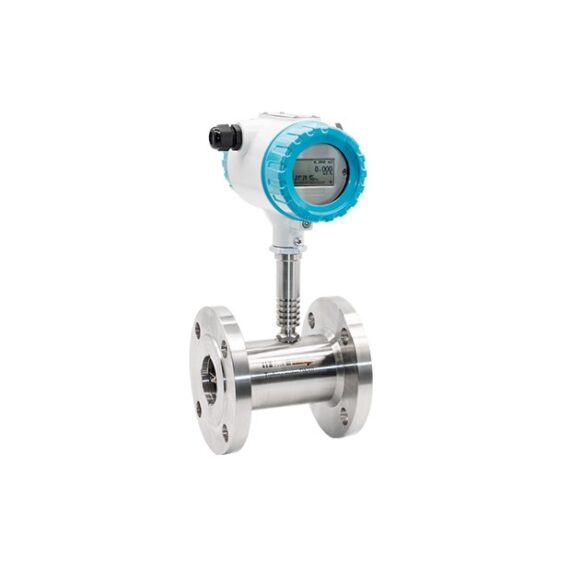

Turbine Liquid Flow Meter | LWGY

Description Turbine Liquid Flow Meter | LWGY Table 1: Liquid Turbine Flow Meter Parameters Size & Process Connection Thread connection: DN4, 6, 10, 15, 20, 32, 40, 50, 65, 80, 100 Flange connection: DN15, 20, 32, 40, 50, 65, 80, 100, 125, 200 Clamp connection: DN4, 6, 10, 15, 20, 32, 40, 50, 65, 80, 100 Accuracy ±0.5%, ±0.2% Optional Sensor Material SS304, SS316L Optional Ambient Conditions Medium temperature:-20℃~ 150℃ Atmospheric pressure:86Kpa~106Kpa Ambient temperature:-20℃~ 60℃ Relative humidity:5%~90% Signal Output Pulse, 4-20mA, Alarm(optional) Digital Communication RS485, MODBUS; HART Power Supply 24V DC/3.6V Lithium Battery Cable Entry M20*1.5; 1/2″NPT Explosion-proof class Ex d IIC T6 Gb Protection class IP65; IP67 Optional Table 2: Liquid Turbine Flow Meter Dimension  Diameter Flange Connection (mm) L(mm) D(mm) K (mm) d (mm) n (Holes） Flange Thickness C (mm) 10 345 90 60 14 4 16 15 75 95 65 14 4 16 20 80 105 75 14 4 18 25 100 115 85 14 4 18 32 120 140 100 18 4 18 40 140 150 110 18 4 19 50 150 165 125 18 4 21 65 175 185 145 18 4 21 80 200 200 160 18 8 23 100 220 220 180 18 8 23 125 250 250 210 18 8 25 150 300 285 240 22 8 25 200 360 340 295 22 12 27 Table 3: Liquid Turbine Flow Meter Flow Range Diameter (mm) Standard Range (m3/h) Extended Range (m3/h) Connection Standard(Optional) Standard Pressure (Mpa) Customised Pressure Rating(Mpa) DN4 0.04~0.25 0.04~0.4 Thread 6.3 12,16,25…42 DN6 0.1~0.6 0.06~0.6 Thread 6.3 12,16,25…42 DN10 0.2~1.2 0.15~1.5 Thread 6.3 12,16,25…42 DN15 0.6~6 0.4~8 Thread (Flange) 6.3,2.5 (Flange) 4.0,6.3,12,16,25…42 DN20 0.8~8 0.45~9 Thread (Flange) 6.3,2.5 (Flange) 4.0,6.3,12,16,25…42 DN25 1~10 0.5~10 Thread (Flange) 6.3,2.5 (Flange) 4.0,6.3,12,16,25…42 DN32 1.5~15 0.8~15 Thread (Flange) 6.3,2.5 (Flange) 4.0,6.3,12,16,25…42 DN40 2~20 1~20 Thread (Flange) 6.3,2.5 (Flange) 4.0,6.3,12,16,25…42 DN50 4~40 2~40 Thread (Flange) 2.5 4.0,6.3,12,16,25…42 DN65 7~70 4~70 Flange 2.5 4.0,6.3,12,16,25…42 DN80 10~100 5~100 Flange 2.5 4.0,6.3,12,16,25…42 DN100 20~200 10~200 Flange 1.6 4.0,6.3,12,16,25…42 DN125 25~2500 13~250 Flange 1.6 2.5,4.0,6.3,12,16…42 DN150 30~300 15~300 Flange 1.6 2.5,4.0,6.3,12,16…42 DN200 80~800 40~800 Flange 1.6 2.5,4.0,6.3,12,16…42 Table 4: Liquid Turbine Flow Meter Model Selection Model Suffix Code Description LWGY- XXX X X X X X X X X Diameter Three Digitals; for example: 010: 10 mm;              015: 15 mm; 080: 80 mm;              100: 100 mm Converter N No display; 24V DC; Pulse Output A No display; 24V DC; 4-20mA Output B Local display; Lithium Battery Power; No output C Local display; 24V DC Power; 4-20mA Output; C1 Local display; 24V DC Power; 4-20mA Output; Modbus RS485 Communication C2 Local display; 24V DC Power; 4-20mA Output; HART Communication Accuracy 05 0.5% of Rate 02 0.2% of Rate Flow Range S Standard Range: refer to flow range table W Wide Range: refer to flow range table Body Material S SS304 L SS316 Explosion Rating N Safety Field without Explosion E ExdIIBT6 Pressuring Rating E Per Standard H(X) Customized Pressure Rating Connection -DXX DXX: D06, D10, D16, D25, D40 D06: DIN PN6; D10: DIN PN10 D16: DIN PN16; D25: DIN PN25 D40: DIN PN40 -AX AX: A1, A3, A6 A1: ANSI 150#; A3: ANSI 300# A6: ANSI 600# -JX -TH Thread; DN4…DN50 Fluid  Temperature -T1 -20… 80°C -T2 -20… 120°C -T3 -20… 150°C Turbine Liquid Flow Meter | LWGY
