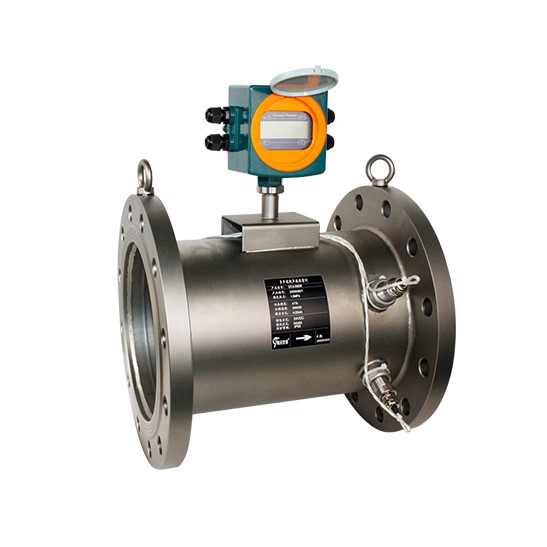

Multi-Channel Ultrasonic Flow Meter | RWTT Multi-channel

Description Multi-Channel Ultrasonic Flow Meter | RWTT Multi-channel Table 1: Multi-Channel Ultrasonic Flowmeter Specification Accuracy ±0.5 % Repeatability ±0.2% Viscosity 0.1 ~ ±7 m/s Measuring cycle 50mS. (20 times/s, collect 64 groups data) Display Backlight LCD display Input 2-way two-wire PT1000 Output 4~20mA, Pulse, OCT, RS485 Other function Memory total flow date, month, year Fault self-diagnosis function Cable length Max.100m Pipe inner dia. 50mm ~1200mm Pipe Steel, Stainless steel, Cast iron, PVC, Cement pipe and allow pipe with lining Straight pipe Upstream≥10D,Downstream≥5D,Pump outlet≥30D Media Water, Seawater, Acid solution, Cooking oil, Gasoline, Coal oil, Diesel, Alcohol, Beer and other uniform liquids could transmit ultrasonic waves Turbidity ≤10000 ppm, low bubble content Temperature -10~150℃ Flow direction Could separately measure forward and reverse flow, and could measure net flow Temperature Host:-10-70℃; Sensor:-30℃ ~ 150℃ Humidity Host:85%RH Power supply DC24V, AC220V Body material Carbon steel, SUS304, SUS316 Table 2: Multi-Channel Ultrasonic Flowmeter Specification QTDS-30 XXX X X X X X Caliber 50~2000 mm Body Material Carbon steel C SS304 S0 SS316 S1 Nominal pressure 0.6 Mpa P1 1.0 MPa P2 1.6 MPa P3 2.5 MPa P4 Other special P5 Output 4-20mA, Pulse, OCT, RS485 O Structure Integral I Remote R Connection Flange 1 Multi-Channel Ultrasonic Flow Meter | RWTT Multi-channel
