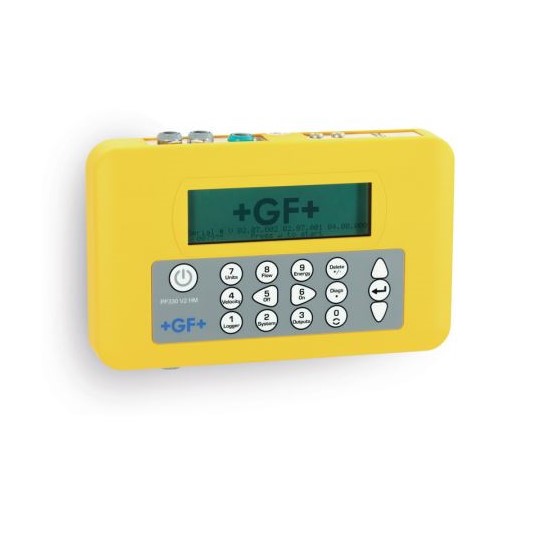

Portable Ultrasonic Flowmeter | GF PF220/330 V2

Description Portable Ultrasonic Flowmeter | GF PF220/330 V2 Specifications General Measuring Method Ultrasonic transit-time measurement Flow Range 0.1 m/s to 20 m/s Accuracy Pipe ID >75 mm: ±0.5% to ±2% of flow reading for flow rate >0.2 m/s Pipe ID 13 mm – 75 mm: ±3% of flow reading for flow rate >0.2 m/s All pipe ID’s: ±6% of flow reading for flow rate <0.2 m/s Repeatability ±0.5% of measured value or ±0.02 m/s whichever is the greater Response Time < 500 ms depending on pipe diameter Selectable Flow Units Velocity: m/sec, ft/sec. Volume: “l/s, l/min, l/h, gal/min, gal/h, USgals/min, USgals/h, Barrel/h, Barrel/day, m³/s, m³/min, m³/h” Selectable Total Volume Units liter, gallons, US gallons, Barrel, m³ Total Volume 12 digits Menu Languages EN, DE, FR, RU, SWE, IT, SP, P, NO, DEN (user selectable) Temperature sensors (Heatmeter models only) Operating Temperature 0 °C to 50 °C Storage Temperature -10 °C to 60 °C Temperature of Pipe Wall -20 °C to 85 °C Accuracy Pt100 Class B 4-wire Resolution 0.1 °C Humidity During Operation ax. 90% relative humidity at 50 °C Environmental Operating Temperature -20 °C to 50 °C Storage Temperature -25 °C to 65 °C Pipe Wall Temperature -20 °C to 135 °C Operating Humidity Max. 90% relative humidity @ 50°C Suitable Pipe Types Pipe Materials PVDF, PP-H, PE, PB, ABS, UPVC, CPVC, construction steel, iron, stainless steel, copper Pipe Diameter (OD) 13 mm to 2000 mm Pipe Wall Thickness 1 mm to 75 mm Pipe Lining Applicable pipe linings include Rubber, Glass, Concrete, Epoxy, Steel Pipe Lining Thickness 0 mm to 10 mm Electronics Power Supply 9 to 24 V DC Power Consumption Max. 10.5 W Battery Technology 5-cell NiMH Capacity 3.8 Ah Operating Time (typical) Typically 20 hours continuous with backlight and 4 to 20 mA output OFF Recharge Time 6.5 h Service Life >500 charge/discharge cycles AC Adapter Input Voltage 90 to 264 V AC (47 to 63 Hz) Output Voltage 12 V DC Output Current Maximum 1.5 A Approvals UL, CUL, TUV, CB, CE Outputs Analog Output Range: 4 to 20 mA, 0 to 20 mA, 0 to 16 mA Resolution: 0.1% of full scale Load Max.: 620 Ω Isolation: 1500 V Opto-isolated Alarm Current: Adjustable between 0 to 26mA Pulse Output Type: 3x Opto-isolated MOSFET volt free contact (NO/NC) Options: Flow totals, energy (HM version only), loss of signal, low flow alarms. Pulse sequence: Volumetric mode: 1 to 50 pulses/sec user-programmable Frequency mode: 200Hz max. pulse frequency Pulse Width: 50 ms standard value, 3 to 99 ms user-programmable Max. Voltage: 48 V Max. Current: 150 mA Isolation: >110 V AC/DC USB Interface (PF330 V2 only) Protocol: Supports full speed (12Mbits/sec) data connection Software: USB driver software is provided with the package Connector: USB Typ-A female Data Logger (PF330 V2 (HM) only) Data Logged application details, time, date, flowrate, forward total, reverse total, flow velocity, flow side temperature, return side temperature, temperature difference, power, total energy, signal quality, signal SNR, signal status Number of Data Points 100 million Number of Data Sites 12 Number of Data Points per Site No limit Programmable Logging Interval 5 s to 1 h Start / Stop Manually or timer controlled Data Download USB interface Transducer Sets Type A 13 to 114 mm (½ inch to 4.5 inch) pipe OD (2MHz) Type B 50 to 2000 mm (2 inch to 40 inch) pipe OD (1MHz) Housing and Display Material ABS Dimensions 264 x 168 x 50 mm Weight 1.1 kg (incl. battery) Keypad 16 key tactile feedback membrane keypad Display Type: 240 x 64 pixel graphic display, high contrast black-on-white, with backlight Viewing angle: Min. 30°, typically 40° Active area: 127 x 34 mm 5 Protection class IP 54 Shipping Information PF330 Packaging Dimensions: 420 x 390 x 220 mm Weight: 7.5 kg Volume Weight: 5.7 kg PF220 Packaging Dimensions: 510 x 140 x 440 mm Weight: 6 kg Volume Weight: 5.2 kg Standards and Approvals CE, RoHS compliant Safety BS EN 61010-1:2010 EMC BS EN 61326-1:2013 BS EN 61326-2-3:2013 Power Supply EN61204-3 UL, CUL, TUV, CB, CE Environmental BS EN 60068-1:2014 BS EN 60068-2-1:2007 Portable Ultrasonic Flowmeter | GF PF220/330 V2
