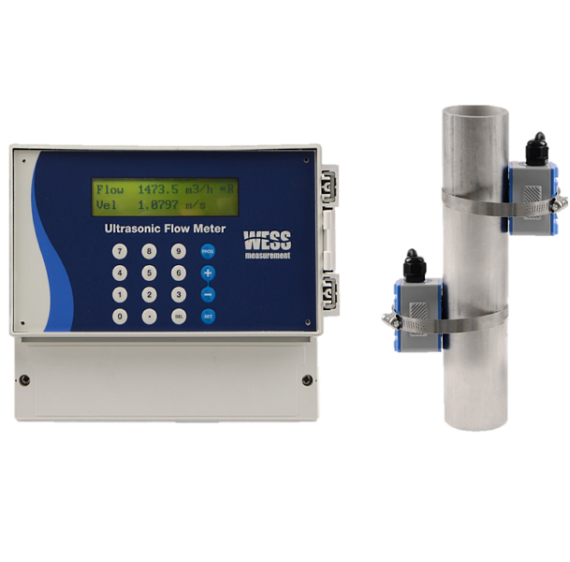

Description Clamp-On Ultrasonic Flow Meter | FLO100 Model C5-S Linearity Better than ±0.5% Accuracy ±0.5 ~ 1% of rate Repeatability ±0.2% Velocity 0 ~ 32m/s, bi-directional Measurement period 0.5 Sec. Display LCD with backlight. 2×20 English letters Outputs 1) Analogue output : 4-20mA or 0-20mA (Impedance 0~1kΩ) 2) Relay output 1EA X 1A@125VAC or 2A@30VDC3) Digital output : RS232 serial port4) Pulse output : 12~9999Hz Input 2EA X 4-20m A current inputs (option : 5 inputs) Logging Max 5 years totalizing data Enclosure Body/Cover : ABS, Window : Polycarbonate IP IP65 Dimension 231(W) x 185(L) x 120(H)mm for standard version Ultrasonic Flow Meter Sensor Model S5-G Sensor type Clamp-on Pipe size 50A ~ 700A Temperature -10 ~ 70°C Materials Head: Epoxy Cover : Aluminium Dimension 60(W)x45(L)x45(H)mm Sensor Model S5-L Sensor type Clamp-on Pipe size 300A ~ 6000A Temperature -10 ~ 70°C Materials Head: Epoxy Cover : Aluminium Dimension 80(W)x70(L)x55(H)mm Clamp-On Ultrasonic Flow Meter | FLO100
