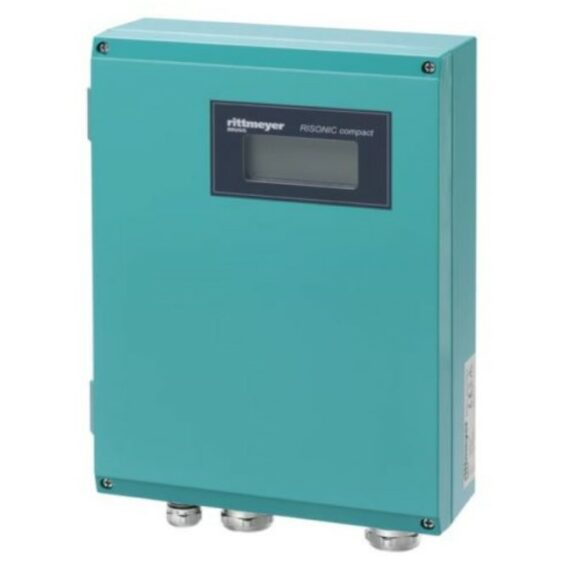

Description Ultrasonic Flow Transmitter | RISONIC COMPACT Pipe size 0.08 m … 3 m Pipe wall thickness 1 mm … 60 mm Flow velocity ± 0 … 20 m/s bi-directional Communication interfaces and protocols Ethernet port 10/100BaseT, WIFI 802.11a/b/g/n/ac, 3G/4G/5G cellular modem option, USB host interface, Modbus RTU TCP, IEC 60870-5-104, PROFINET / PROFIBUS, HART®, M-Bus, CAN, BACnet All-in-one housing IP66 protected, IP68 optional Wizard-based configuration by web interface Smartphone, Tablet, PC Discrete interfaces 1x analogue output 0…20 mA 4x digital outputs (switchover contacts/solid-state relays) Power supply options 19.2 … 60 VDC 90 … 264 VAC Integrated data logger with 8 GB storage space Maintenance-free (very low power consumption) and very durable (drift-free) Supports up to 2x ultrasonic measuring paths Supports up to 2x individual flow measurement sections (pipes) Easy installation with magnetic sensor frames, adhesive mounting or mounting straps Integrated MMI (display of measurement/status values) Integrated WIFI for fast and easy commissioning Integrated 3G/4G/5G cellular modem option (worldwide access) All external interfaces are galvanically isolated and overvoltage-protected Ultrasonic Flow Transmitter | RISONIC COMPACT
