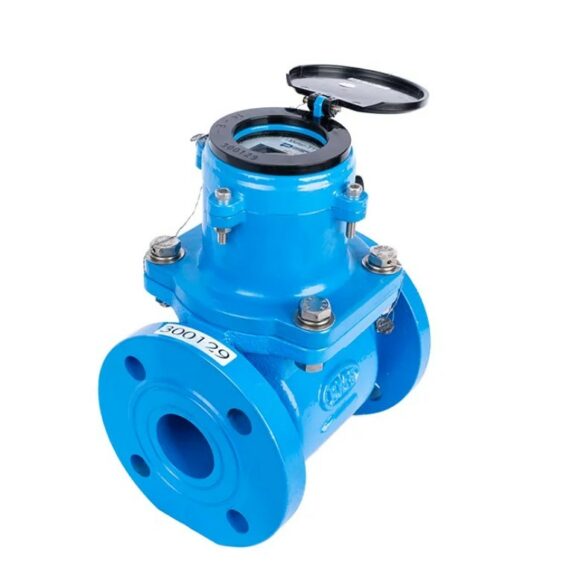

Hybrid Water Meter Class C – Overview This Water Meter has built-in logging and intelligent management functions. Logged data can be scrolled through on-site using the IP68 LCD counter. The battery is replaceable and has a ± 8-year battery life. Intelligent functions include: – leakage indicator, forward/reverse flow indicator, battery level indicator, tamper indicator, instantaneous flow rate, accumulated flow rate, overload flow rate, and accumulated flow rate. The meter has a 200mm long epoxy-coated cast iron body flanged Table 16. It fully complies with SANS 1529-1: 2019, the N.R.C.S. and Chapter 5 of the Legal Metrology Act 2014 (Act 9 of 2014) requirements. The EMS Hybrid meter is tested and verified in South Africa in the Precision Meters S.A.N.A.S. Accredited Verification Laboratory. Precision Meters can issue SANAS verification certificates for these meters. Hybrid Water Meter Class C – Features 40mm to 100mm comply with SANS1529 -1: 2019 (Class C) 150mm to 300mm comply with ISO4064 (Class C) OIML R49-1 (MID) R315 capable IP68 counter with Gauss 1500 protection Clear LCD display Intelligent Management Functions Internal Data Logging. Data scroll through facility on counter External GSM ow/pressure logger available Meter not affected by magnetic interference Working temperature ≤ 60°C. (Ambient Maximum 70°C) Working pressure 1600 kPa Fanged drilled Table 16 50 mm to 150mm tested and verified in South Africa Epoxy-coated cast iron body Designed for Horizontal installation Internal mechanism removable without removing body from pipe Built-in Flow Straightener ± 8-year battery life under normal use Replaceable lithium battery Multiple communication options – Pulse, 4-20mA, RS485, Modbus
