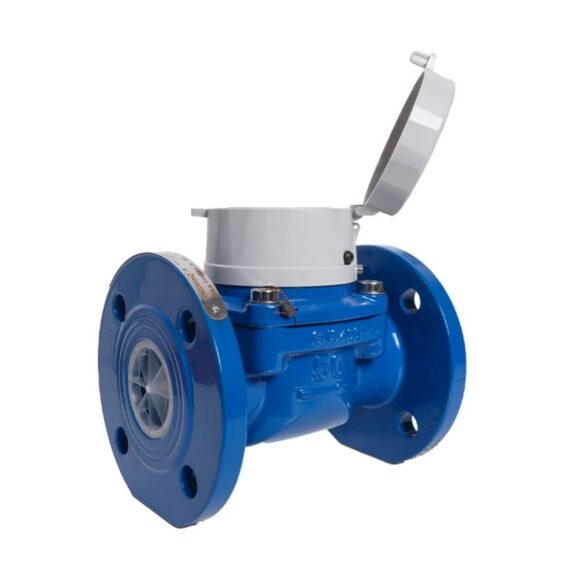

Infinity Evo Bulk Meter Class B – Overview The Infinity Evo Bulk Meter Class B is suitable for accurate measurement of the volume of cold potable water passing through a pipeline, as well as zone metering and area monitoring. The meter body is manufactured from SG cast iron ensuring extra strength and shock resistance. The meter body is epoxy-coated both internally and externally. The steel pivot and synthetic sapphire bearings ensure long-term durability and accuracy. The internal mechanism is manufactured from hard-wearing anhygroscopic anti-scaling virgin engineering plastics. Infinity Evo Bulk Meter Class B – Features Performance to SANS 1529-1: 2019 specifications Directive 2014/32/EU (AnnexMI-001) Certified P68 copper can register with scratch-resistant mineral glass lens Pulse ready as standard Magnetic reed switch, inductive pulser or radio module options Performance is not affected by installation conditions Suitable for horizontal and vertical installations Serial number printed on dial face Registers have magnetic protection to prevent magnetic interference and tampering Meter has built-in flow straightener No upstream and downstream straight pipe requirements (U0-D0) The nominal working pressure is 1600 kPa. (16 Bar) The maximum working temperature is 50° C Fully shrouded pre-calibrated interchangeable internal mechanisms are available for ease of maintenance The meter body does not affect accuracy The calibration vane is situated in a protected by-pass thus preventing impact and movement of the calibration vane by suspended solids in the pipeline resulting in the meter losing accuracy Can be marked with a QR code and a meter serial number
