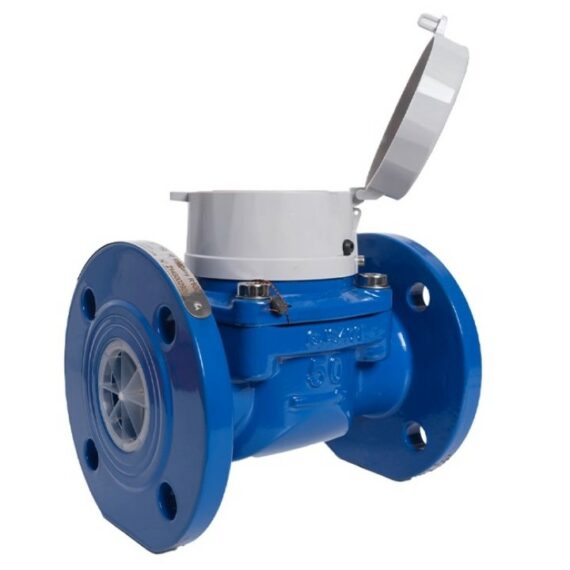

Infinity Evo Bulk Meter Class C – Overview The Infinity EVO Bulk Meter Class C is for accurate measurement of the volume of cold potable water passing through a pipeline. It is suitable for metering large consumers. It has low flow rate measurement capability for zone metering, area monitoring and establishing minimum night flows. Infinity Evo Bulk Meter Class C – Features Epoxy-coated both internally and externally Fully shrouded calibrated internal mechanisms can be replaced in the field without removing the meter body from the line Synthetic sapphire rotor bearings and steel pivots to ensure durability and maximum wear life T50 with a maximum operating temperature 50°C PN16 with a nominal working pressure of 1 600 kPa Internal plastic components are constructed of hard-wearing anhygroscopic anti-scaling engineering virgin plastic materials Body is manufactured from SG (spheroidal graphite) cast iron for extra strength and shock resistance Built-in flow straightener on the inlet side of meter and the meter. This eliminates the need for additional straight lengths of pipe upstream or downstream of the meter body. (U0-D0) Hermetically sealed IP68 copper can counter/register with scratch-resistant mineral glass lens Register has additional magnetic protection to prevent external magnetic interference and tampering Pulse-ready. Optional bi-directional inductive pulser and/or separate magnetic reed switches are available for separate order Register is set up with a multi-pulse output and can generate 2 different pulses at the same time Suitable for horizontal, inclined, or vertical (Up↑) installation Serial number on the dial face of the meter register 1-year warranty against faulty factory workmanship
