$18.75
$32.06

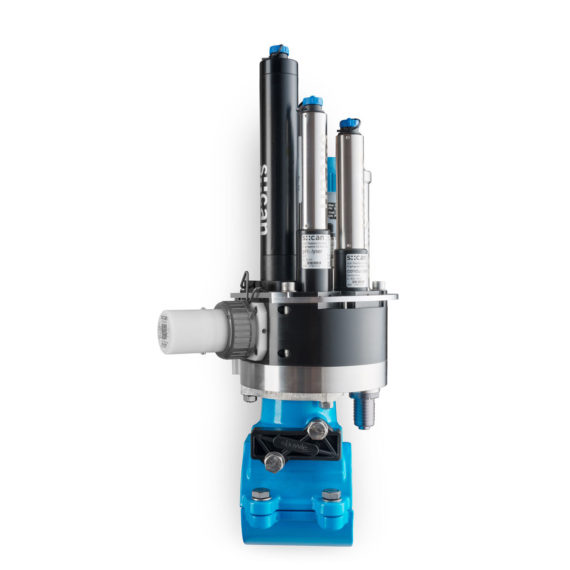

Description Drinking Water Monitoring | Pipe::scan Part Number pipe::scan Systems P-103-PIPESCAN pipe::scan system: FCl, Pressure, Temp P-104-PIPESCAN pipe::scan system: FTU, FCl, pH, Pressure, Temp P-105-PIPESCAN pipe::scan system: FCl, pH, EC, Pressure, Temp P-106-PIPESCAN pipe::scan system: FTU, FCl, pH, EC, Pressure, Temp, autobrush P-107-PIPESCAN pipe::scan system: UV254, FTU, FCl, pH, EC, Pressure, Temp, autobrush P-108-PIPESCAN pipe::scan system: TOC, UV254, FTU, FCl, pH, EC, Pressure, Temp, autobrush P-109-PIPESCAN pipe::scan system: Colour, TOC, UV254, FTU, FCl, pH, EC, Pressure, Temp, autobrush Name Specification Remark Part-no. F-450-PS-BASE Dimensions 220 / 450 / 340 mm8.66 / 17.7 / 13.39 inch W / H / D Required space 250 / 750 / 350 mm W / H / D Weight approx. 8.0 kg Material in contact with water POM, stainless steel, PMMA, fine brass EN12165 and EN12164,PTFE, PA, PP, EPDM o-rings Material other depends on used sensors see sensor manual Environment rating (IP) IP 67 Storage humidity 0 to 95 % not condensing Operation temperature 0 (non-freezing) to 40°C (32 to 104°F) no direct sunlight Storage temperature base unit -20 to 60°C (-4 to 140°F) Device has to be acclimatized to operation temperature before initial operation Storage temperature sensors 0 to 45°C (32 to 113°F) Operation pressure 1 to 10 bar 14.5 to 145 psi pipeline must be vented Operation pH range 4 – 12 pH Installation on top of pipe max. /- 2° Mounting on 2? Hawle pipe saddle to be ordered separately Process connection ball valve for manual sampling IG 1/4″ EN10206-1 Power supply via con::cube Power consumption 14 W (typical)35 W (max) depending on configuration depending on configuration Drinking water safety certificate ACS (France) Conformity – EMC EN 61326-1 Maintenance interval pump, valves, brush, filter and sensors have to be maintained / replaced depending on application Enclosure has to be replaced regularly (depending on the environmental conditions) Drinking Water Monitoring | Pipe::scan
Monitoring Stations
