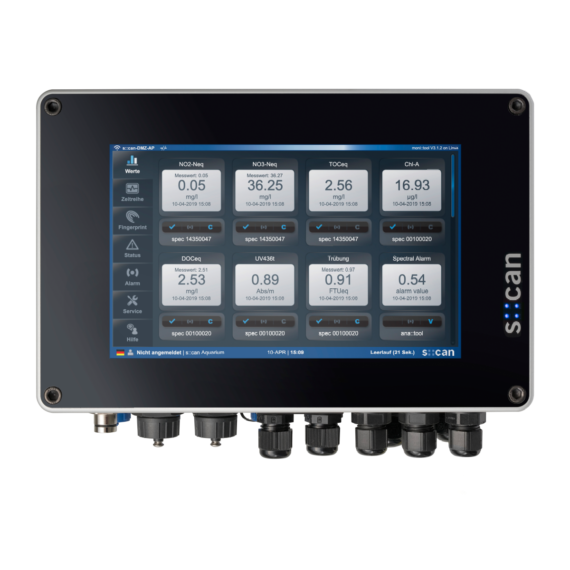

Description Con::cube VS3 Technical Specifications Integration of 1 x s::can spectrometer probe and 4 x s::can sensors | ISE probes Display color-display 9″ TFT Function Indicator 4 x LED Operation via Integrated touch-screen (optional) Ethernet – Browser | VNC WIFI – Browser | VNC USB (keyboard, mouse) 3G modem (optional) Operating system Linux Main memory 2 GB RAM Onboard memory 16 GB Interface to s::can spectrometric probes M12 RSTS 8Y (IP67) RS485 Ethernet Interface to s::can sensors 4 x sys plug RS485 Interface to third-party sensors Modbus RTU/TCP Analog inputs Network connection 802.11n a/b/g WIFI 300Mb/s Ethernet LAN 1 Gb/s Worldwide 3G HSPA Interface to SCADA Modbus RTU/TCP Profibus DP (optional) SDI-12 (optional) Analog outputs Data transfer via SSH | FTP |TML (XML) USB stick Remote control via HTTP Grounding <0.5 Ohm to process media Power supply D-330-230: 100 – 240 VAC D-330-024: 10 – 36 VDC Power consumption (typical) 1.5 W (in sleep mode) 10 W (no analog ports) 30 W (fully equipped) Power consumption (max.) 20 W (no analog ports) 60 W (fully equipped) Analog outputs up to 8×2 x 0/4-20 mA Analog inputs up to 8×2 x 0/4-20 mA Outputs for automatic cleaning 2 Digital inputs up to 8×2 x 14 VDC Relay outputs 4 x 2A (500 VAC) System error relay 1 x 2A (500 VAC) Dimensions (width x height x depth) 280 x 209 x 85 mm Housing material Aluminum alloy | Powder coated Weight (min.) 4 kg Operating temperature -20 – 50 °C Storage temperature -20 – 60 °C Storage humidity 5 – 90 % Ingress protection class IP65 Conformity – EMC EN 61326-1 Conformity – safety IEC/EN/UL/CSA 61010-1 IEC/EN/UL/CSA 61010-2-201 IEC/EN 60529 part number 24V D-330-024 part number 230V D-330-230 Standard Accessories part number article name S-11-04-moni moni::tool – Basic s::can monitoring station software for 4 parameters D-315-out-relay 4 digital outputs (output module), provides 4 configurable relay contacts 1A D-303-LX Linux Application Licence (obligatory to D-330) Recommend Accessories part number article name C-31-eu Optional 2 m power cable C-31-us Optional 2 m power cable C-32-MIL Cable to connect a V2 spectrometer probe to a con::cube V3 terminal D-315-3GLX Worldwide 3D internet connection via Quad-band HSPA (up to 5.7 Mbps/21 Mbps) D-315-in-mA 2 analog inputs (input module) provides 2 analog inputs (4-20mA) for integration of 3rd party readings D-315-in-relay 2 digital inputs (input module) provides 2 digital IN (5-24V) for integration of 3rd party readings D-315-out-mA 2 analog outputs (output module), provides data transfer to PLC systems D-315-out-Profibus provides Profibus DPV0 for data transfer to PLC systems D-315-out- SDI12 SDI 12 (output module), provides SDI 12 for data transfer to PLC systems D-315-antenna-pro External, high range antenna option for con::cube, incl. 10 m extension cable D-315-antenna-plug Internal antenna adapter cable and connector | option for con::cube S-11-autosampler moni::tool – auto sampler feature S-11-basic-PLC moni::tool – basic PLC functionality (time control, pulsing, custom bits) S-11-camera moni::tool – camera input S-11-data-export moni::tool – automatic data transfer (via SSH, FTP, TML) S-11-free-for- mula moni::tool – configureable mathematic formula S-11-SMS moni::tool – SMS notification S-14-vali vali::tool – s::can data validation software S-15-ana ana::tool – s::can event detection software F-51 weather shield for s::can terminals S-20-MVA The complete license of all moni::tool modules, vali::tool, and ana::tool Con::cube VS3
