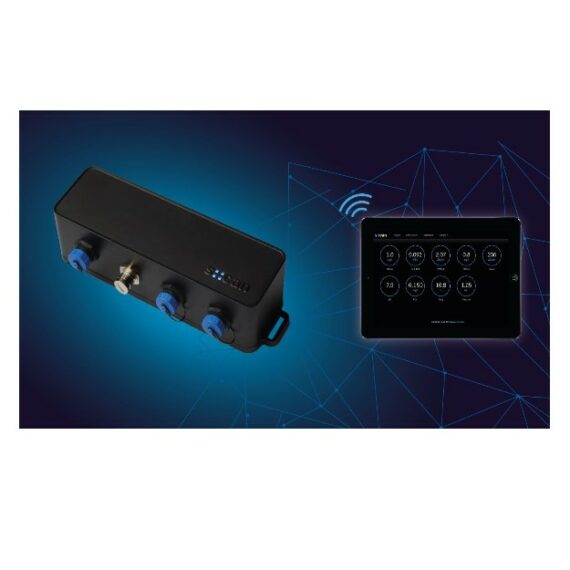

Description Low Power Terminal | con::line Technical specification onboard memory 8 GB interface to s::can sensors modbus RTU through 6-pin buccaneer plug (sensors) and 12-pin buccaneer plug (pipe::scan) interface to third party sensors 2 x multi-purpose inputs: current OR voltage OR pulse counting network connection built-in 4G LTE connection local operation Io::Tool through WLAN antennas CELLULAR. 2J2124B-B05H with 3 m cable 4G / WLAN: built-in antenna antenna plug SMA (fm) frequency bands GSM, DCS, WCDMA, LTE, GNSS interface to SCADA modbus RTU and TCP (through M12 plug) cleaning device support ruck::sack, auto::brush, cleaning valve cloud transfer CSV file push through SFTP, SCP REST API data pull device updates local or over the air update power supply external 2-pin buccaneer plug 9-18V DC, <1,5 A power consumption (typical) 1,5 W without sensors power consumption (sleep model) < 50 mW power consumption (max.) 18 W with full sensor load SIM card format size (1FF) data security TLS 1.3, SSH encryption, hardware encryption of data remote configuration config file pull from server supply outputs 1 x 12V 6 pin buccaneer, 4 x 12V 12 pin buccaneer (shared between sensors and cleaning devices), 1 x 5V 12 pin buccaneer individually switchable dimensions (width x height x depth) 22,6 x 6,0 x 6,4 cm housing material polyurethane weight (min.) approx. 500 g (1.1 lbs) operating temperature -20 … 60 °C installation / mounting direct wall mounting, top hat rail mounting with adapters ingress protection class IP67 part number D-500-012 certified according to RED, FCC, ISED, PTCRB Low Power Terminal | con::line
