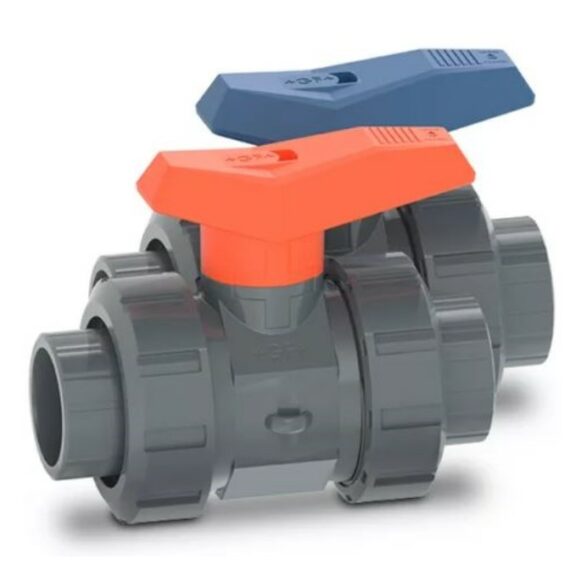

Manual Plastic Ball Valve | 542

$24.28 $44.43
Description Manual Plastic Ball Valve | 542 Specification Dimensions d16/DN10 – d63DN50, ⅜” – 2” Materials Central part PVC-U, PVC-C, PP-H Lever PP-GF30 Gasket materials O-rings EPDM, FKM Ball seat PTFE, PE Pressure levels PP PN10 PVC-U, PVC-C PN16 Connections Fusion / solvent cement sockets ISO, ASTM, JIS, BS Fusion / solvent cement spigot ISO Threaded socket Rp, NPT, Rc Backing flange ISO, ANSI, BS, JIS Butt fusion spigots SDR11 and SDR17.6 PE100 electrofusion spigot or butt fusion spigot SDR11 and SDR17.6 Kv 100 values DN (mm) Inch (inch) d (mm) Kv 100 (l/min) Cv 100 (gal/min) Kv 100 (m³/h) 10 ⅜ 16 70 4,9 4 15 ½ 20 185 12,9 11 20 ¾ 25 350 24,5 21 25 1 32 700 49,0 42 32 1 ¼ 40 1000 70,0 60 40 1 ½ 50 1600 112,0 96 50 2 63 3100 217,1 186 65 2 ½ 75 5000 350,0 300 80 3 90 7000 490,0 420 100 4 110 11000 770,0 660 Manual Plastic Ball Valve | 542
