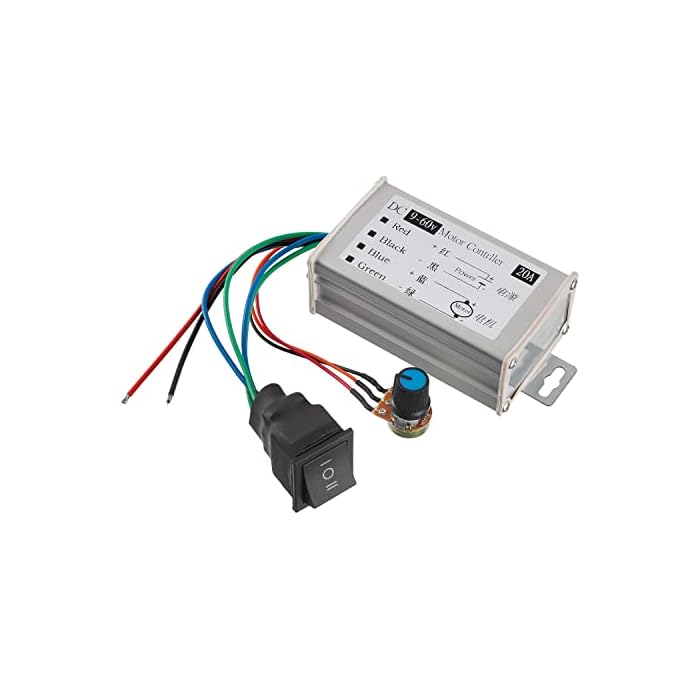

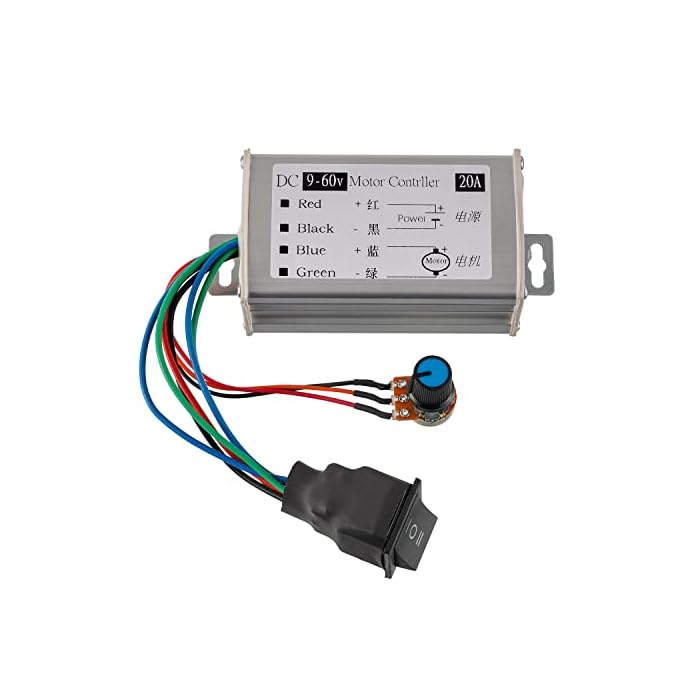

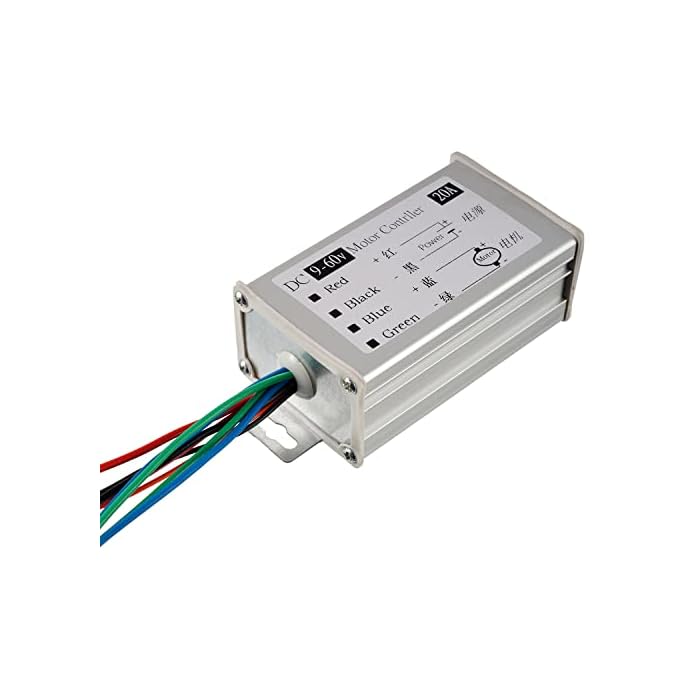

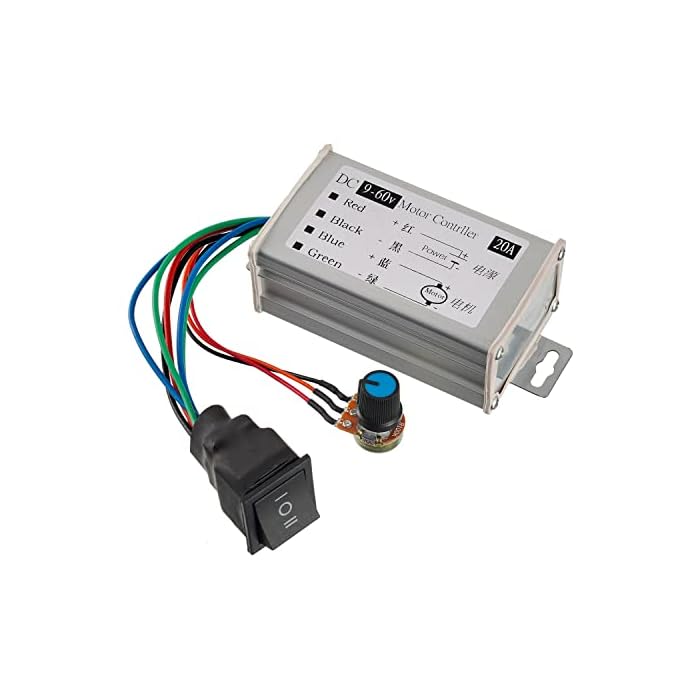

BOJACK Motor Speed Controller 9V-60V 12V 24V 36V 48V 60V Brush Motor Driver Controls Module Motor Pulse Width Modulator Regulator 20A 1200W PWM Monitor Dimmer Governor with Switch Knob

BOJACK Specifiction for Motor Speed Controller Control frequency: 25KHz clockwise / counterclockwise rotation; support Fit motor DC brush size: 92x52x36mm Product net weight: 155 grams Wiring connection: thick red line: power , thick black line: power -, blue and green motor is not positive or negative Potentiometer mounting hole diameter: 7mm Input voltage range: DC 9-60V output voltage Linear load output current: 0-20A Continuous power: 1200W Speed control mode: potentiometer (linear) Speed range: 0-100% Continuous current: within 18A The input voltage should be equal to the rated voltage of the motor Includes: 1x DC motor controller Note: The motor cannot be used in electric vehicles. Motor speed controller input voltage range is 9-60V, output current range is 0-20A, continuous power is 1200W. The dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit. Note: The motor cannot be used in electric vehicles. Motor control board can regulate motor speed by potentiometer; what’s more, it support clockwise/anticlock-wise rotation adjustment. Thick red wire for the positive of the power supply, and thick balck for the negative; thick blue wire for the motor positive, and the thick green for the motor negative. The advantage of using a pulse width modulation (PWM) method for dimming / speed regulation is that the energy of the power supply can be fully utilized and the circuit is highly efficient.
