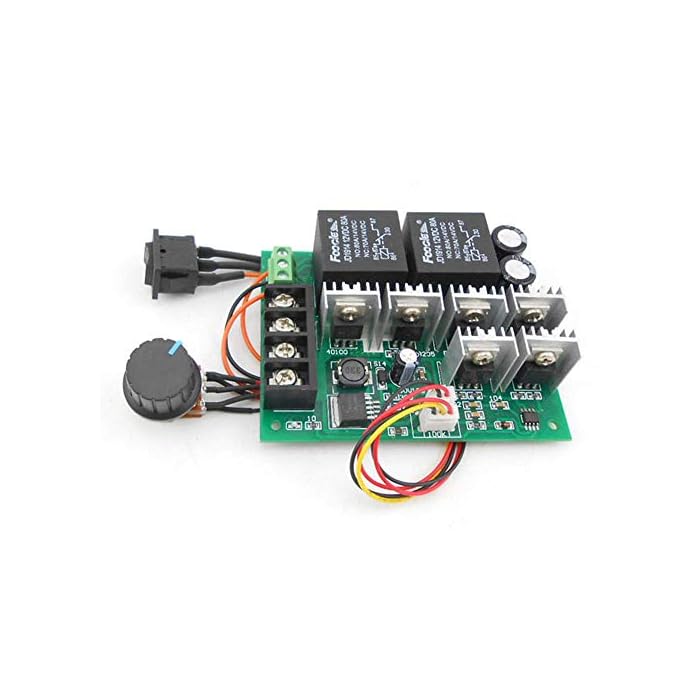

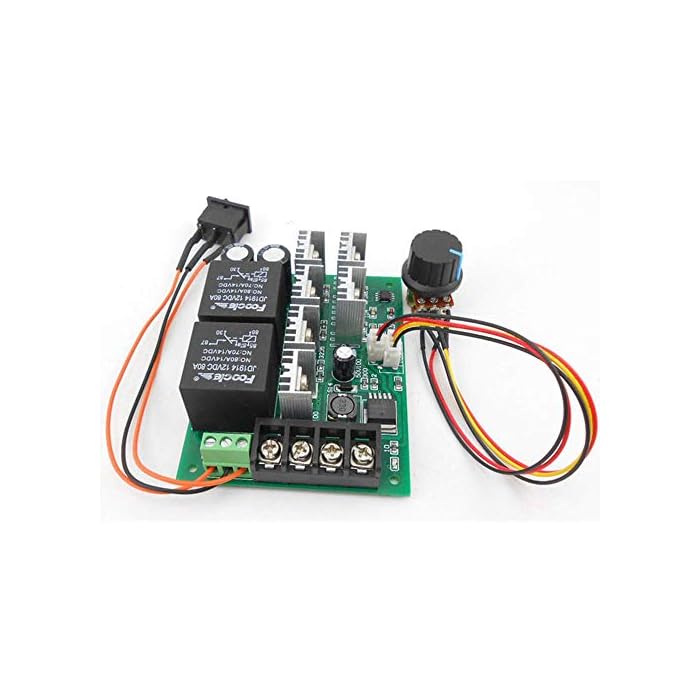

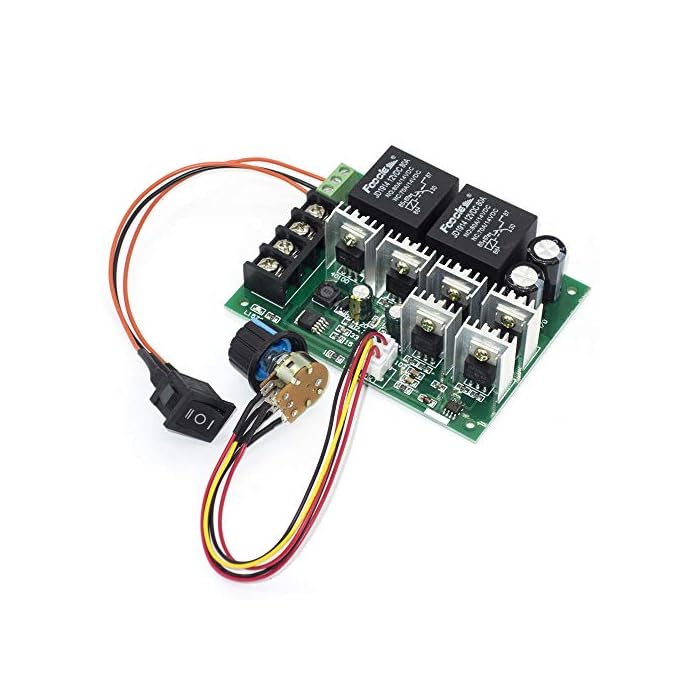

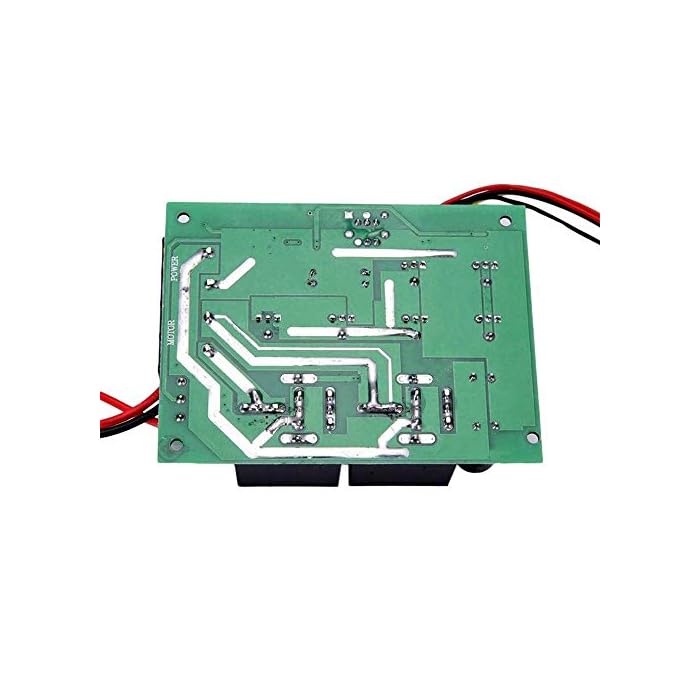

ICQUANZX DC Motor Controller,DC 9-50V 40A DC Motor Speed Control Reversible PWM Controller 12V 24V 36V 48V 2000W Forward Reverse Switch

product feature:Larger current, high torque, forward reverse direction, with brake You can adjust the speed of the motor and the direction of rotation. The maximum current of this regulator is 40A.Power requirement: DC 9-50 VRated current: 40 A (maximum output current)Frequency: 25 kHzRegulation range: 0-100%Function: Forward to stop to reversePCB size: 100mm x 76mm x 28mmWeight: 175 gControl engine power:0.01-2000 W12V: 480W (max), 24V: 960W (max)48V: 1920W (max), 50V: 2000W (max) Package List:1 x DC motor speed controller Bigger current, high torque,, forward backward direction You can adjust the speed of the motor and the direction of rotation. The maximum current of this regulator is 40A. Power requirement: DC 9-50 V / wide operating voltage range Control power: 0.01-2000W (maximum rated current 40A, long operating current up to 20A) Direction control: Rocker switch, “I” is forward / CW, “II” is reverse / CCW and “0” is STOP / brake
