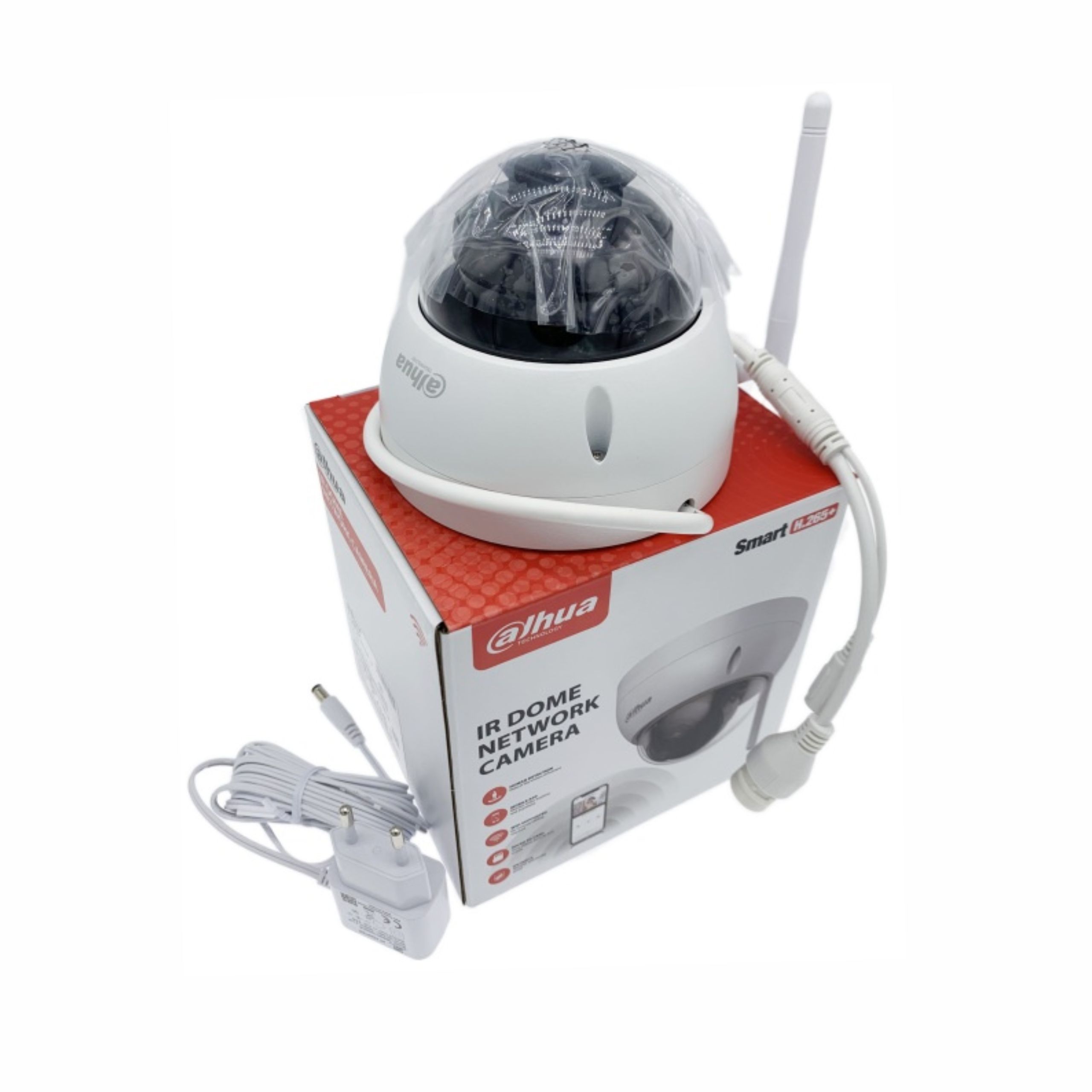

Dahua IPC-HDBW1430DE-SW 4MP WiFi Dome ip Camera

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select  NTSC/PAL, 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua IPC-HDBW1430DE-SW 4MP WiFi Dome ip Camera   Camera Image Sensor 1/3″ CMOS Max. Resolution 2560 (H) × 1440 (V) ROM 16 MB RAM 64 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.03 [email protected] (Color, 30 IRE) 0.003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 30 m (98.43 ft) (IR LED) Illuminator On/Off Control Auto; Manual Illuminator Number 3 (IR LED) Pan/Tilt/Rotation Range Pan: 0–355° Tilt: 0–75° Rotation: 0–355° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F2.0 Field of View 2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107° 3.6 mm: Horizontal: 76°; Vertical: 40°; Diagonal: 92° Iris Control Fixed Close Focus Distance 2.8 mm: 1.0 m (3.28 ft) 3.6 mm: 1.4 m (4.59 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 68 m (223.10 ft) 27.2 m (89.24 ft) 13.6 m (44.62 ft) 6.8 m (22.31 ft) 3.6 mm 85.2 m (279.53 ft) 34.1 m (111.88 ft) 17.0 m (55.78 ft) 8.5 m (27.89 ft) Video Video Compression H.264B; H.264; H.264H; H.265 Smart Codec Smart H.265 ;Smart H.264 Video Frame Rate Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720) Bit Rate Control CBR/VBR Video Bit Rate H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR DWDR White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/180° Mirror Yes Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering Network Network Port RJ-45 (10/100 Base-T) Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz Wireless Range Up to 80 m (The performance varies based on actual environment) SDK and API Yes Cyber Security Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP Interoperability ONVIF (Profile S/Profile G); CGI; P2P User/Host 6 (Total bandwidth: 36 M) Storage Micro SD card (support max. 256 GB, sold separately) Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Client iOS; Android Certification Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C Power Power Supply 12 VDC Power Consumption Basic: 2 W (12 VDC); Max. (H.265 IR intensity): 4.9 W (12 VDC) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F) Operating Humidity ≤95% Storage Temperature –30 °C to 60 °C (–22 °F to 140 °F) Protection IP67; IK10 Structure Casing Metal Product Dimensions Φ110.7 mm × 88.7 mm (Φ4.33″ × 3.49″) Net Weight 414 g (0.91 lb) Gross Weight 592 g (1.31 lb)
