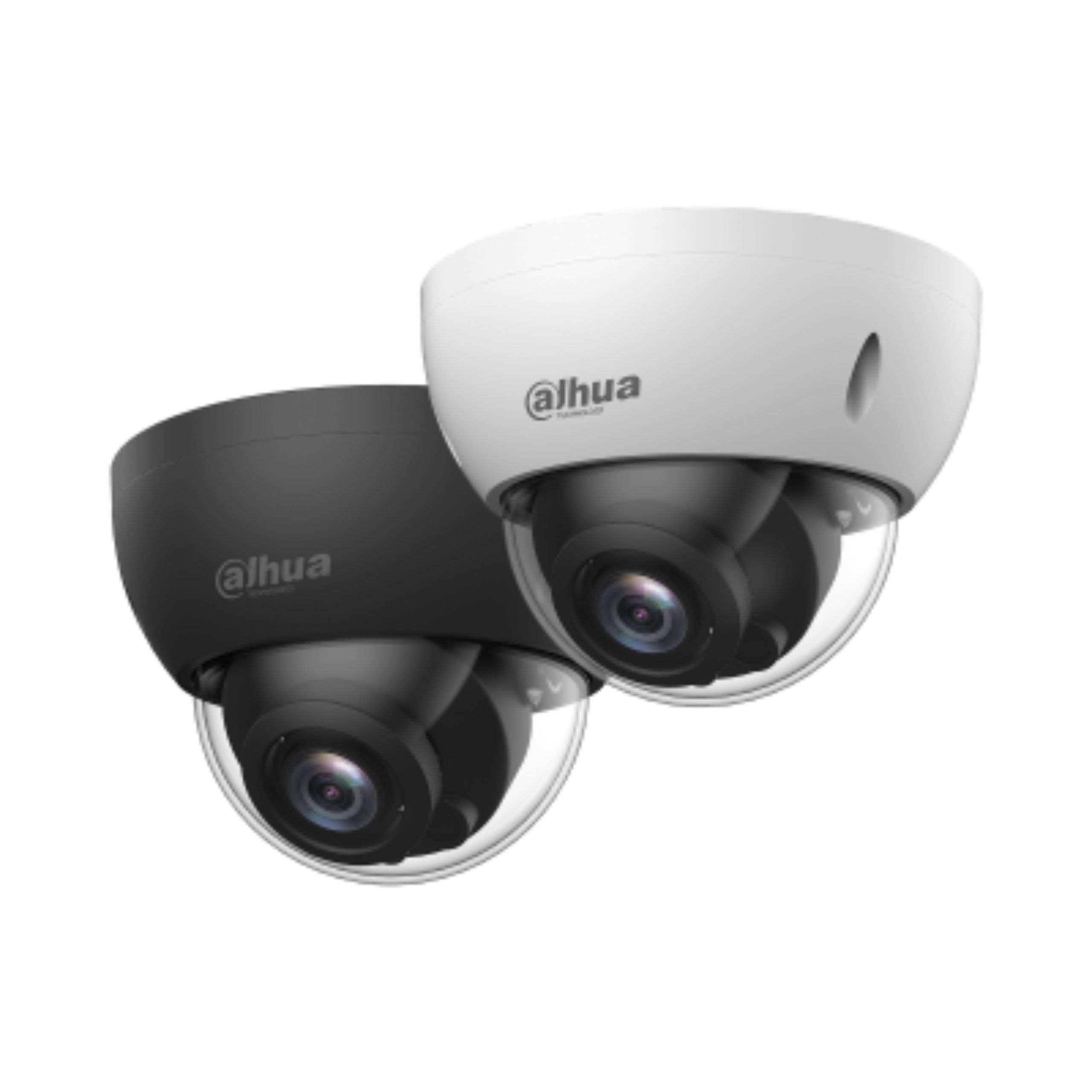

Dahua IPC-HDBW2431R-ZAS-S2 4MP Vari-focal Dome ip Camera

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select the multi-languageand NTSC/PAL, Support English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Czech, Dutch, Arabic. 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua IPC-HDBW2431R-ZAS-S2 4MP Vari-focal Dome ip Camera   Camera Image Sensor 1/3” CMOS Effective Pixels 2688 (H) × 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.01 Lux @ F1.6 IR Distance 40 m (131.23 ft) (IR) IR On/Off Control Auto/Manual IR LEDs Number 2 (IR LED) Pan/Tilt/Rotation Range Horizonal: 0°–355° Vertical: 0°–67° Rotation: 0°–355° Lens Lens Type Motorized vari-focal Mount Type φ14 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.6 Field of View Horizonal: 104°–27° Vertical: 55°–15° Diagonal: 124°–31° Optical Zoom 5 times Iris Type Fixed Close Focus Distance 0.8m–0.8m (2.62 ft–2.62 ft) DORI Distance Lens Detect Observe Recognize Identify W 64 m (209.97 ft) 25.6 m (83.99 ft) 12.8 m (41.99 ft) 6.4 m (21 ft) T 220 m (721.78 ft) 88 m (288.71 ft) 44 m (144.36 ft) 22 m (72.18 ft) Smart Event General IVS Analytics Intrusion; tripwire Video Video Compression H.265; H.264; H.264B; MJPEG Smart Codec H.264: Yes H.265: Yes Video Frame Rate 50Hz Main stream (2560 × 1440@25 fps); sub stream (704 × 576@25 fps); Third stream: CIF@1fps Main stream (2688 × 1520@20 fps); sub stream (704 × 576@20 fps); Third stream: CIF@1fps 60Hz Main stream (2560 × 1440@30 fps); sub stream (704 × 480@30 fps); Third stream: CIF@1fps Main stream (2688 × 1520@20 fps); sub stream (704 × 480@20 fps); Third stream: CIF@1fps Stream Capability Main stream; sub stream, Third stream Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night ICR switch BLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection Disable/Enable (4 areas, rectangle) Region of Interest(RoI) Yes (4 areas) Smart IR Yes Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.) Mirror Yes Privacy Masking 4 areas Audio Audio Compression G.711a; G.711Mu; G.726; AAC Network Network RJ-45 (10/100 Base-T) Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP;IGMP; Interoperability ONVIF (Profile S/Profile G); CGI; Milestone; Genetec User/Host 20 Edge Storage Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS Browser IE Google Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL: UL60950-1 CAN Port Audio Input 1 (RCA port) Audio Output 1 (RCA port) Alarm Input 1 channel In: 5mA 5VDC Alarm Output 1 channel Out: 300mA 12VDC Power Power Supply 12V DC/POE Power Consumption Basic power consumption: 1.9W (12V DC); 2.8W (POE) Max power consumption: (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.6W (12V DC), 6.5W (POE) Environment Operating Temperature -30°C to 60°C (-22°F to 140°F) Operating Humidity ≤95% Storage Temperature -40°C to 60°C (-40°F to 140°F) Storage Humidity ≤95% Protection Grade IP67, IK10 Structure Casing Metal Dimensions Φ122 mm × 88.9 mm (Φ4.80″ × 3.50″) Net Weight 0.47 kg (1.04 lb) Gross Weight 0.63 kg (1.39 lb)
