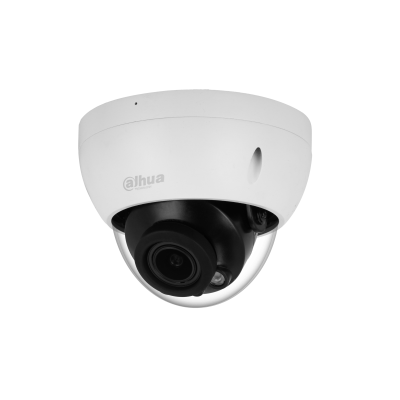

Dahua IPC-HDBW2441R-ZS 4MP WizSense Vari-focal Dome ip Camera

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select the multi-languageand NTSC/PAL, Support English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Czech, Dutch, Arabic. 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua IPC-HDBW2441R-ZS 4MP WizSense Vari-focal Dome ip Camera   Camera Image Sensor 1/2.9″ CMOS Max. Resolution 2688 (H) × 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 40 m (131.23 ft) (IR LED) Illuminator On/Off Control Auto; Manual Illuminator Number 2 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° Lens Lens Type Motorized vari-focal Lens Mount φ14 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.5 Field of View H: 104°–29°; V: 54°–16°; D: 125°–34° Iris Control Fixed Close Focus Distance 0.8 m (2.62 ft) DORI Distance Lens Detect Observe Recognize Identify W 64.0 m (209.97 ft) 25.6 m (83.99 ft) 12.8 m (41.99 ft) 6.4 m (20.99 ft) T 210.0 m (688.97 ft) 84.0 m (275.59 ft) 42.0 m (137.80 ft) 21.0 m (68.90 ft) Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265 Smart H.264 Video Frame Rate Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@(1-25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Manual;Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711a; G.711Mu; G.726; PCM Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone User/Host 6 (Total bandwidth: 36 M) Storage FTP; SFTP; Micro SD card (support max. 256 GB) Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Client iOS; Android Cyber Security Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade Certification Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Port Audio Input 1 channel (RCA port) (Only – ZAS supports) Audio Output 1 channel (RCA port) (Only – ZAS supports) Alarm Input 1 channel in: 5mA 3V–5V DC (Only – ZAS supports) Alarm Output 1 channel out: 300mA 12V DC (Only – ZAS supports) Power Power Supply 12 VDC/PoE (802.3af) Power Consumption -ZS: Basic: 2.3 W (12 VDC); 3.2 W (PoE) Max. (H.265 intelligence on WDR IR on): 6.4 W (12 VDC); 7.6 W (PoE) -ZAS: Basic: 2.3 W (12 VDC); 3.2 W (PoE) Max. (H.265 intelligence on WDR IR on): 6.5 W (12 VDC); 7.7 W (PoE) Environment Operating Temperature –30 °C to 60 °C (–22 °F to 140 °F) Operating Humidity ≤95% Storage Temperature –40 °C to 60 °C (–40°F to 140°F) Protection IP67; IK10 Structure Casing Material Metal Product Dimensions 93.4 mm × Φ122 mm (3.68″ × Φ4.80″) Net Weight -ZS: 0.49 kg(1.08 lb) -ZAS: 0.52 kg(1.15 lb) Gross Weight -ZS: 0.66 kg(1.46 lb) -ZAS: 0.68 kg(1.50 lb)
