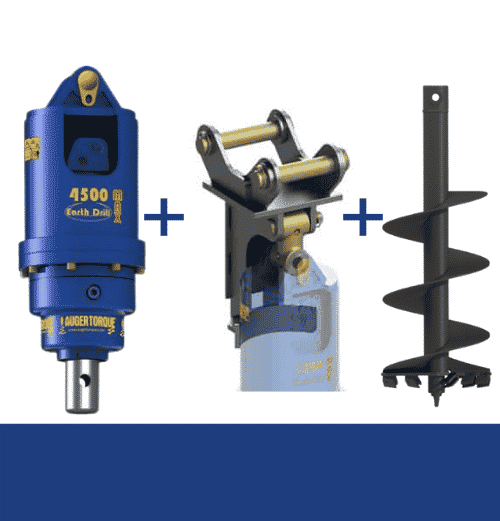

Description Our Auger Torque package deal suitable for excavators from 3ton to 5ton. We are offering an all-in-one auger attachment solution for small excavators in the 3ton to 5ton range. Included in our package deal: 4500MAX Earth Drill Double Pin Cradle Hitch – Fabricated to suit your excavator Tungsten Auger up to 300mm Pair of 1/2″ BSP Hydraulic Hoses – no couplers All you require is a pair of hydraulic couplings to suit your machine This package deal would be ideal for the following excavators (as a guideline): JCB 48Z JCB 51R Volvo EC55 Volvo ECR40 Volvo ECR50 Kubota KX042 Kubota U50 Kubota KX037 Takeuchi TB240 Takeuchi TB250 Neuson ET42 Neuson EZ50 Any excavator in the 3t to 5t weight class Earth Drill Specifications 4500MAX Earth Drill Oil Pressure Range: 80 – 240 Bar Torque Range: 1,500 – 4,499 Nm Oil Flow Range: 50 – 95 lpm Speed Range: 43 – 81 rpm Output Shaft: 65mm Round Height: 665mm Width: 244 mm Weight: 75kg Technical Specifications – PDF Download 4500MAX Earth Drill Technical Specs 4500MAX Earth Drill Speed Chart 4500MAX Earth Drill Torque Chart Auger Specifications S4 Tungsten Auger Overall length: 1.2m Fully flighted: 950mm Diameter: Up to 300mm Hub Size: 65mm Round Overall Length given includes wear parts. All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System. Hitch Specifications Double Pin Cradle Hitch The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time WE WILL NOT BE BEATEN ON PRICE, IF YOU FIND THIS PACKAGE CHEAPER ELSEWHERE - WE WILL BEAT IT!
