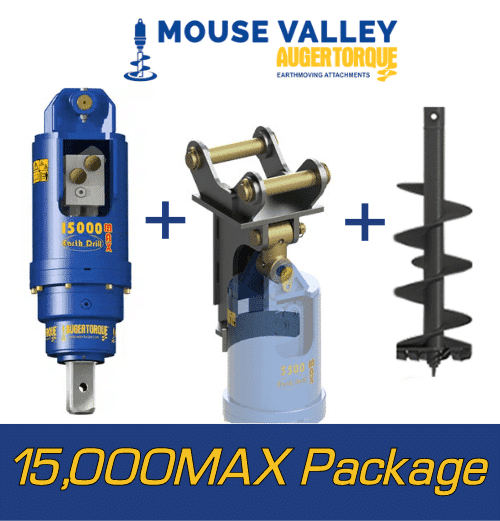

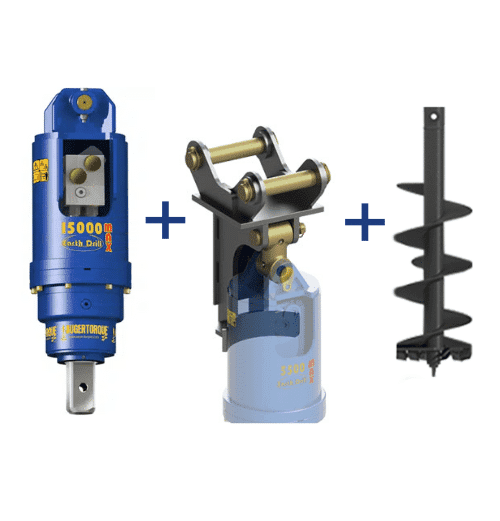

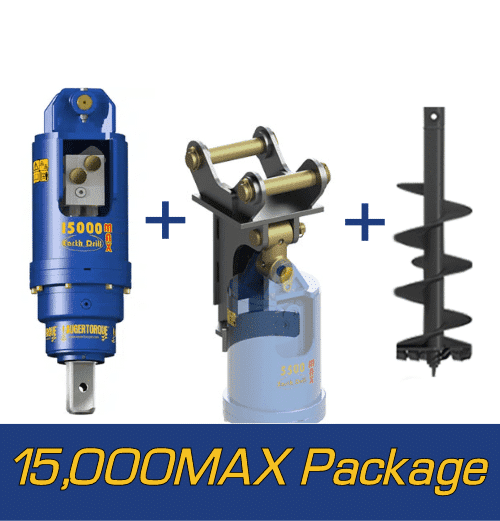

Description Our Auger Torque package deal suitable for excavators in the 12-16t range. We are offering an all-in-one auger attachment solution for small excavators in the 12ton to 16ton range. Included in our package deal: 15,000MAX Earth Drill Double Pin Cradle Hitch – Fabricated to suit your excavator Tungsten Rock Auger up to 300mm Hoses and QRC’s not included All you require is a pair of hydraulic couplings and hoses to suit your machine The 15,000MAX package is ideally suited for the following excavators (as a guideline): JCB JS130 JCB JS145 Takeuchi TB2150 Volvo EC140 Komatsu PC130 Volvo EC160 JCB JS160 JCB 151X Any excavator in the 12t to 16t weight class Earth Drill Specifications 15,000MAX Earth Drill Mini excavators 10T to 15T. Oil Pressure Range: 80 – 240 Bar Torque Range: 5024 – 15071 Nm Oil Flow Range: 80 – 170 lpm Speed Range: 20 – 43 rpm Output Shaft: 75mm Square Height: 930mm Width: 290mm Weight: 173kg Technical Specifications – PDF Download 15,000MAX Earth Drill Technical Specs 15,000MAX Earth Drill Speed Chart 15,000MAX Earth Drill Torque Chart Auger Specifications S6 Rock Auger Overall length: 1.875m Diameter: Up to 300mm Hub Size: 75mm Square Overall Length given includes wear parts. All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System. Hitch Specifications Double Pin Cradle Hitch The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time WE WILL NOT BE BEATEN ON PRICE, IF YOU FIND THIS PACKAGE CHEAPER ELSEWHERE - WE WILL BEAT IT!
