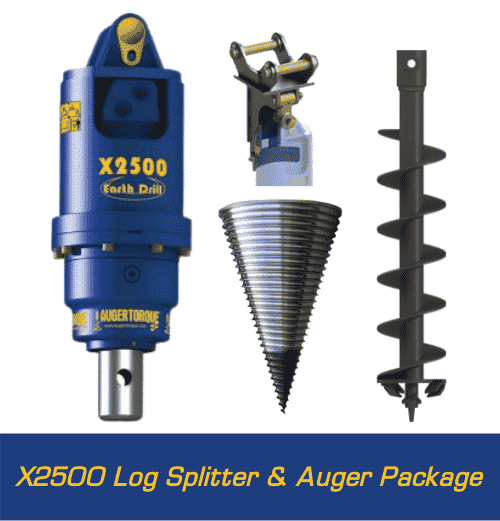

Description Our Auger Torque log splitter package deal suitable for excavators from 1.5ton to 2.8ton. We are offering an all-in-one auger and log splitter attachment solution for small excavators in the 1.5ton to 2.8ton range. Included in our package deal: X2500 Earth Drill MVE 200mm Log Splitter Cone Double Pin Locking Cradle Hitch – Fabricated to suit your excavator Tungsten Auger up to 300mm Pair of Hydraulic Hoses All you require is a pair of hydraulic couplings to suit your machine. The X2500 package is ideally suited for the following excavators (as a guideline): JCB 8015 JCB 8018 Kubota KX014 Kubota KX016 Takeuchi TB016 Takeuchi TB23R Takeuchi TB216 Terex TC20 Any excavator in the 1.5t to 2.8t weight class Earth Drill Specifications Auger Torque X2500 Earth Drill Mini excavators 1.5T to 2.8T. Oil Pressure Range: 70 – 240 Bar Torque Range: 830 – 2847 Nm Oil Flow Range: 27 – 65 lpm Speed Range: 36 – 87 rpm Output Shaft: 65mm Round Height: 585 mm Width: 200 mm Weight: 48 kg Technical Specifications – PDF Download Auger Torque X2500 Earth Drill Technical Specs Auger Torque X2500 Earth Drill Speed Chart Auger Torque X2500 Earth Drill Torque Chart Auger Specifications S4 Tungsten Auger Overall length: 1.2m Fully flighted: 950mm Diameter: Up to 300mm Hub Size: 65mm Round Overall Length given includes wear parts. All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System. Hitch Specifications Double Pin Cradle Hitch The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time Locking Kit Double Pin Cradle Hitch – Lock Kit The locking kit included with the package offer is an additional “add-on” component to our standard crale hitches. This allows the user to “lock” the drive unit and splitter cone to the excavator mount enabling the log splitter attachment to work in the same manner as a dedicated splitter such as a Lasco or Black Splitter. This gives the user the same log splitting capabilities as a dedicated unit with the advantgae of increaed torque for splitting wood the the ability to quickly change to an auger attachment. Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time Splitter Cone MVE Log Splitter Cone – 200mm Diameter Suitable for Excavators from 2.5-5 Tonnes and skidsteer Loaders Easily fit to your existing drill (65mm round hub) Replaceable tip, cone supplied with 1 tip as standard 200mm diameter, 355mm length Fits all S4 Drive Units with 65mm round output shaft Download Log Splitter Operators Manual WE WILL NOT BE BEATEN ON PRICE, IF YOU FIND THIS PACKAGE CHEAPER ELSEWHERE - WE WILL BEAT IT!Learn More:
