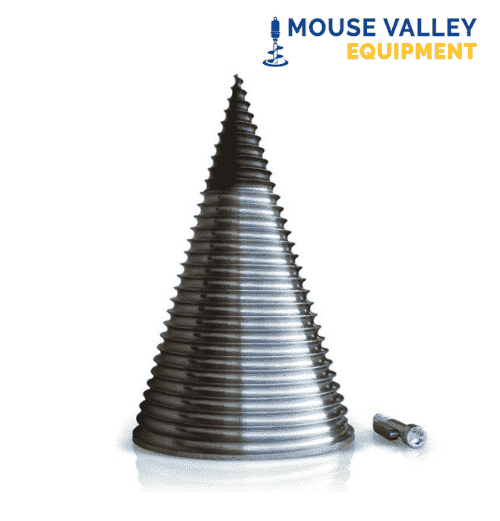

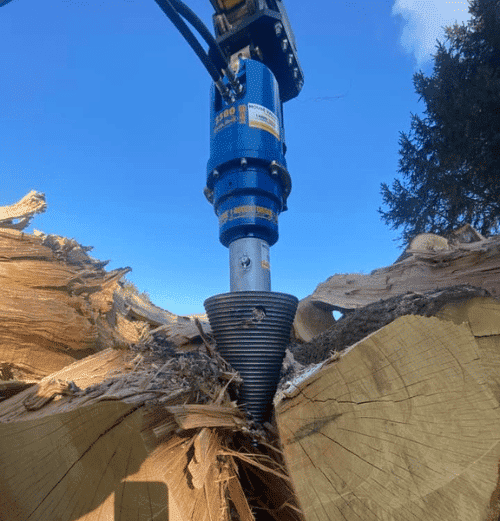

Description Our Auger Torque 5500 Max log splitter package deal is suitable for excavators from 5ton to 6ton. We are offering an all-in-one auger and log splitter attachment solution for excavators in the 5ton to 6ton range. Included in our package deal: 5500MAX Earth Drill MVE 250mm Log Splitter Cone Double Pin Locking Cradle Hitch – Fabricated to suit your excavator Tungsten Auger up to 450mm Pair of Hydraulic Hoses All you require is a pair of hydraulic couplings to suit your machine. The 5500MAX Log Splitter package is ideally suited for the following excavators (as a guideline): JCB 48Z JCB 51R JCB 55Z JCB 57C JCB 65R JCB 8055 Kubota KX057 Kubota U55 Takeuchi TB250 Takeuchi TB260 Neuson ET65 Any excavator from 5t to 6t weight class Earth Drill Specifications 5500MAX Earth Drill Excavators 5T to 6T Oil Pressure Range: 80 – 260 Bar Torque Range: 1685 – 5477 Nm Oil Flow Range: 40 – 115 lpm Speed Range: 30 – 87 rpm Output Shaft: 75mm Square Height: 780 mm Width: 269 mm Weight: 108 kg Technical Specifications – PDF Download 5500MAX Earth Drill Technical Specs 5500MAX Earth Drill Speed Chart 5500MAX Earth Drill Torque Chart Auger Specifications S5 Rock Auger Overall length: 1.5m Diameter: Up to 450mm Hub Size: 75mm Square Overall Length given includes wear parts. All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System. Hitch Specifications Double Pin Cradle Hitch The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time Locking Kit Double Pin Cradle Hitch – Lock Kit The locking kit included with the package offer is an additional “add-on” component to our standard crale hitches. This allows the user to “lock” the drive unit and splitter cone to the excavator mount enabling the log splitter attachment to work in the same manner as a dedicated splitter such as a Lasco or Black Splitter. This gives the user the same log splitting capabilities as a dedicated unit with the advantgae of increaed torque for splitting wood the the ability to quickly change to an auger attachment. Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time Splitter Cone MVE Log Splitter Cone – 250mm Diameter Suitable for Excavators from 2.5-10 Tonnes and skidsteer Loaders Replaceable tip, cone supplied with 1 tip as standard 250mm diameter Fits all S5 Drive Units with 75mm square output shaft Download Log Splitter Operators Manual WE WILL NOT BE BEATEN ON PRICE, IF YOU FIND THIS PACKAGE CHEAPER ELSEWHERE - WE WILL BEAT IT!
